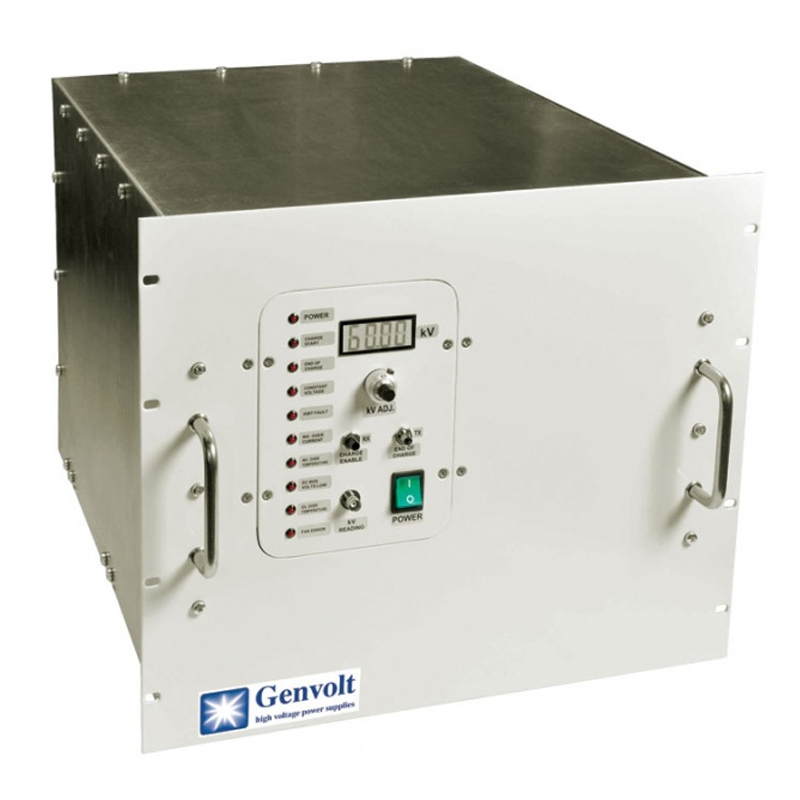

Genvolt Titan(60kV)高压电源

Input Power:

Voltage Source: 415Vac

Output Power:

Average Power: 45000J/sec

Output Voltage: 0 to 60kV

Output Current: 1.65A maximum

Polarity: Positive or negative

Repetition Rate: 250Hz maximum

Duty Cycle: 2 seconds on-load by 2 minutes off-load operation

Guard Band Protection: 200µs fixed after load discharged

HV Connector: Proprietary connector

HV Cable: Mating cable and connector supplied with PSU.

Cable length: 3 metres detachable

Charge Enable: Fibre optic input, active light on

Voltage Program: Adjusted by 10 turn potentiometer with a DVM reading on front panel.

Voltage Monitor: 0 to 10V represents 0 to 60kV output through BNC connector

End of Charge: Fibre optic output, active light on

Operation Temperature: 10 to 40°C

Storage Temperature: -10 to 60°C

Humidity: 0-90% (non-condensing)

Cooling: Forced air

Height: 9U

Depth: 560mm

Width: 19” Rack 605mm

Weight: 70kg
