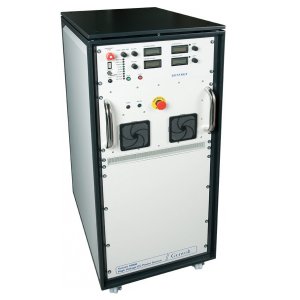

Genvolt Vulcan 高压电源(高达200kV)
制造商: Genvolt Model: Vulcan 来源: United Kingdom 保障: 12 Month - 报价要求
- 联系
Input
Voltage source: 380 to 440VAC
Power factor: ≥ 0.9
Output
Output power: 15kW peak when capacitor charging
Output voltage: 0-1kV|0-2kV|0-5kV|0-10kV|0-20kV|0-30kV|0-40kV|0-50kV|0-60kV
Output current: 0-15A|0-7.5A|0-3A|0-1.5A|0-0.75A|0-0.5A|0-0.375A|0-0.3A|0-25A
The peak current may be double this when capacitor charging
Line regulation: 0.1%
Load regulation: 0.1%
Efficiency: ≥ 0.92
Polarity: Positive or negative
Duty cycle: 100% at 15kW
Control:
Charge enable: Fibre optic input, active light on
Voltage program: Adjusted by 10 turn potentiometer with a DVM reading on front panel.
Voltage monitor: 0 to 10V represents 0 to 60kV output through BNC connector
End of charge: Fibre optic output, active light on
Operation temperature: 10 to 40°C
Storage temperature: -10 to 60°C
Humidity: 0-90% (non-condensing)
Cooling: Forced air
Height: 9U
Depth: 560mm
Width: 19” Rack | 605mm
Weight: 70kg
