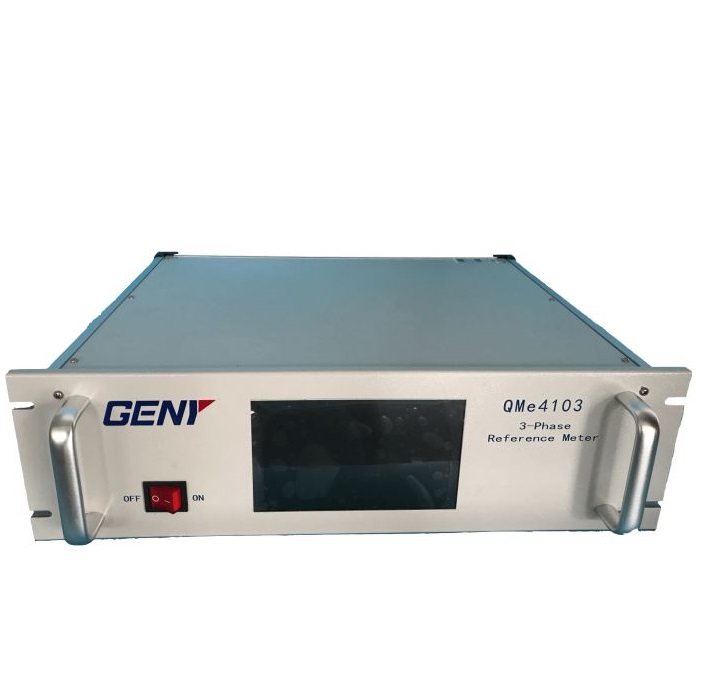

GENY QME4103 Three phase Stationary Reference Standard (5V-480V, 1mA-100A)

AC voltage

- Measurement range: 5Vrms…480Vrms;

- Accuracy: 0.02%;

- Virtual resolution: 0.005V;

- Ranges: 120V/480V;

AC current

- Measurement range: 1mA…100Arms;

- Accuracy: 0.02%;

- Virtual resolution: 0.001mA;

- Ranges: two times shift 100A/10A/1A/0.1A;

Active/reactive/apparent power

- Active power accuracy: 0.05%;

- Reactive power accuracy: 0.1%;

- Apparent power accuracy: 0.1%;

- Virtual resolution: 1mW/mVar/mVA;

Active / reactive energy

- Active energy accuracy: 0.05%;

- Reactive energy accuracy: 0.1%;

- Apparent power accuracy: 0.1%;

- Virtual resolution: 1mWS/mVarS;

Power factor

- Power factor range: -0.9999~+0.9999;

- Accuracy: ±0.0001;

- Virtual resolution: 0.0001

Phase angle of each voltage-current

- Phase angle range: 0~+359.99º

- Accuracy: ±0.005 º;

- Virtual resolution: 0.0001 º;

Frequency

- Frequency range: 45~65Hz;

- Accuracy: ±0.005Hz;

- Virtual resolution: 0.0001Hz
