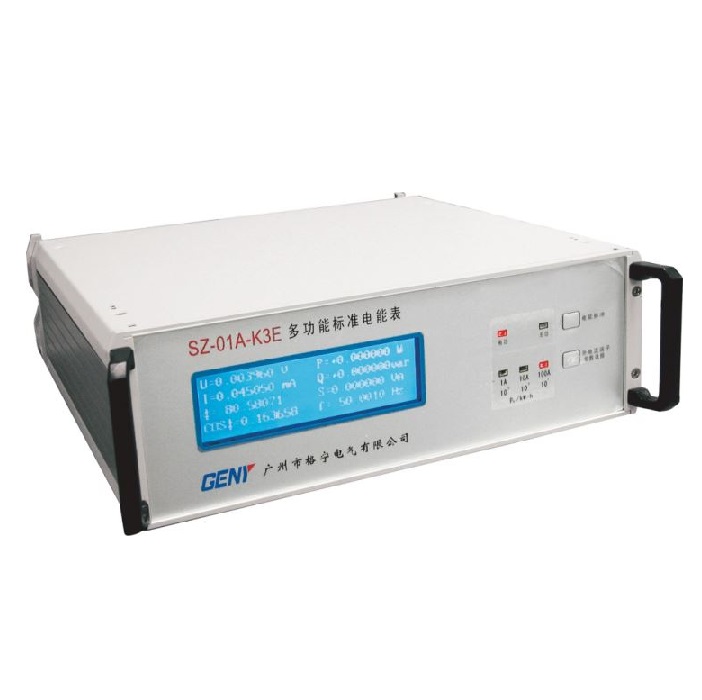

GENY SZ-01A-K3E Single Phase Electronic Energy Standard Meter (50V~400V, 10mA~120A)

Current: ±0.01%RD 10mA~120A

              ±0.03%RD 1mA~10mA

Voltage: ±0.01%RD 50V~400V

        ±0.05%RD  5V~50V

Power

- Active power: ±0.01%RD (50V~400V, 0.05A~120A, cosφ≥0.5)

                         ±0.05%RD (50V~400V, 0.001A~0.05A, cosφ≥0.5)

- Reactive power: ±0.01%RD (50V~400V, 0.05A~120A, sinφ=1.0)

                             ±0.01%RD (50V~400V, 0.05A~120A, sinφ=0.5L/0.8C)

Energy

- Active energy: ±0.01%RD (50V~400V, 0.05A~120A, cosφ≥0.5)

                          ±0.05%RD (50V~400V, 0.001A~0.05A, cosφ≥0.5)

- Reactive energy: ±0.01%RD (50V~400V, 0.05A~120A, sinφ=1.0)

                              ±0.05%RD (50V~400V, 0.05A~120A, sinφ=0.5L/0.8C)

Power supply

- Voltage: AC220V ±22V

- Frequency: 50Hz ±2Hz

- Power consumption: 45VA(max)

Dimension: W×H×D = 325mm×109mm×288mm

Weight: 5.5kg
