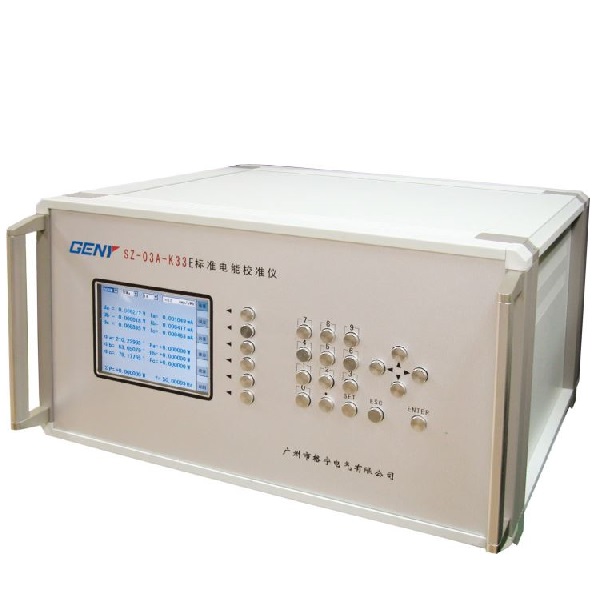

GENY SZ-03A-K33E Three Phase Reference Standard Meter (5V-480V, 1mA-120A)

Test voltage

- Range: 5V-480V

- Error: ±0.05% (30V-480V) ±0.1% (5V-50V)

- Display range: 5.000000V-480.0000V

Test current

- Range: 1mA-120A

- Error: ±0.01% (0.2A-120A) ±0.05% (1mA-0.2A)

- Display range: 1.000000A-120.0000A

Power measure error

- Active power: ±0.01% (0.2A-120A)

                         ±0.02% (0.01A-0.2A)

                         ±0.05% (1mA-0.01A)

- Reactive power: ±0.05% (0.2A-120A) ±0.1% (1mA-0.2A)

- Apparent power: ±0.05% (0.2A-120A) ±0.1% (1mA-0.2A)

Energy measure error

- Active energy: ±0.01% (0.2A – 120A)

                          ±0.02% (0.01A – 0.2A)

                          ±0.05% (1mA – 0.01A)

- Reactive energy: ±0.05% (0.2A – 120A)

                               ±0.1% (1mA – 0.2A)

- Apparent energy: ±0.05% (0.2A – 120A)

                               ±0.1% (1mA – 0.2A)

Phase angle

- Range: 0º – 360º

- Error: ±0.002º

- Display range: 0.000001º --  359.9999º

Frequency

- Range: 45Hz-65Hz

- Display range: 45.000-65.000

Dimensions(WxHxD)(mm): 445×260×480

Weight: 25kg
