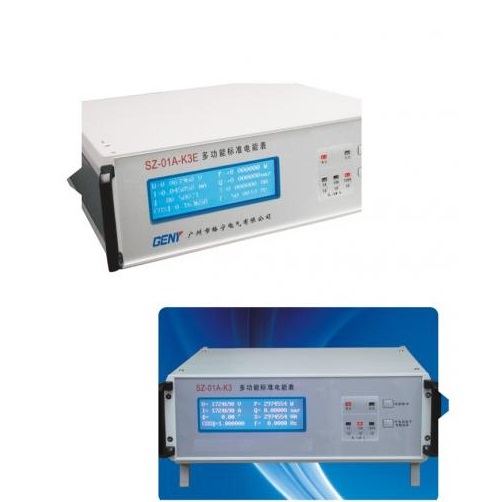

GENY SZ01A-K3 Single Phase Reference Standard Meter (30V-480V, 10mA-120A)

Test voltage

- Range: 30V-480V

- Error: ±0.05% (30V-480V) ±0.1% (5V-50V)

- Display range: 5.000000V-480.000V

Test current

- Range: 10mA-120A

- Error: ±0.05% (0.2A-120A) ±0.1% (10mA – 0.2A)

- Display range: 1.000000A-120.0000A

Power measure error

- Active power: ±0.05%(50mA-120A)

- Reactive power: ±0.1%(50mA-120A)

- Apparent power: ±0.1%(50mA-120A)

Frequency

- Range: 45Hz-65Hz

- Display range: 45.000-65.000

Phase angle

- Range: 0º – 360º

- Error: ±0.05º

- Display range: 0.000001º --  359.9999º

Dimensions(WxHxD)(mm): 325×109×288

Weight(kg): 5.5
