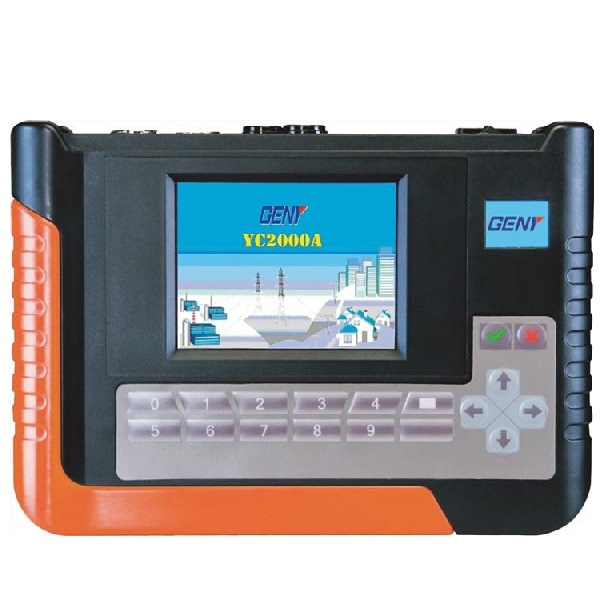

GENY YC2000A Portable Single Phase Standard Meter (10-420V)

Test voltage

- Range: 10-420V

- Error: ±0.1%

- Harmonic: 2nd-51st

Test current

- Range(clamp CT): 100A; 5A,500A,1000A,2000A (option)

- Error(clamp CT): ±0.2%(5A,100A) ±0.5%(other)

- Harmonic: 2nd-51st

Power measure error

- Active power(clamp CT): ±0.3%(5A,100A) ±0.5%(other)

- Reactive power(clamp CT): ±0.5%

Energy measure error

- Active energy(clamp CT): ±0.3%(5A,100A) ±0.5%(other)

- Reactive energy(clamp CT): ±0.5%

Voltage Supply: 50-420V,50/60Hz

Ambient temperature: -25°C - +45°C

Relative humidity: 40% - 95%

Dimensions(WxHxD): 190x140x50

Weight(kg): 0.7kg
