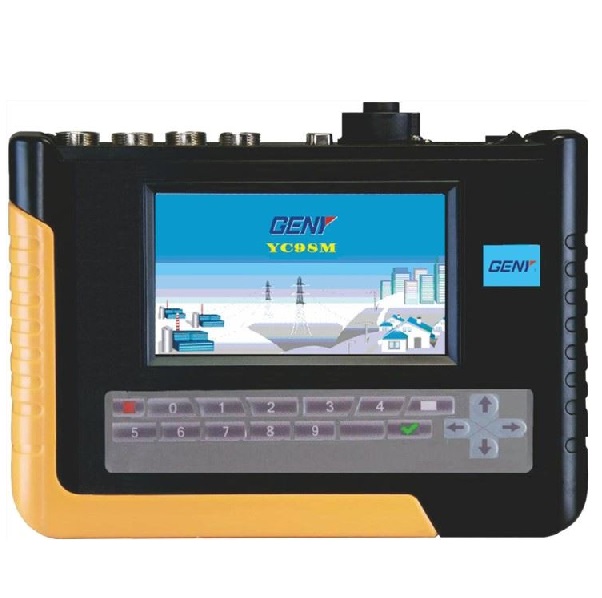

GENY YC98M Portable Three Phase Standard Meter (30V-480V, 0.05-10A)

Test voltage

- Range: 30V-480V

- Error: ±0.1%

- Harmonic: 2nd-51st

Test current

- Range(direct connection): 0.05-10A

- Range(clamp CT): 100A; 5A,500A,1000A,2000A (option)

- Error(direct connection): ±0.1%

- Error(clamp CT): ±0.2%(5A,100A) ±0.5%(other)

- Harmonic: 2nd-51st

Power measure error

- Active power(direct connection): ±0.1%

- Active power(clamp CT): ±0.2%(5A,100A) ±0.5%(other)

- Reactive power(direct): ±0.2%

- Reactive power(clamp CT): ±0.5%

Energy measure error

- Active energy(direct): ±0.1%

- Active energy(clamp CT): ±0.2%(5A,100A) ±0.5%(other)

- Reactive energy(direct): ±0.2%

- Reactive energy(clamp CT): ±0.5%

Voltage Supply: 45-480V,50/60Hz

Dimensions(WxHxD): 214x150x50

Weight(kg): 1.3kg
