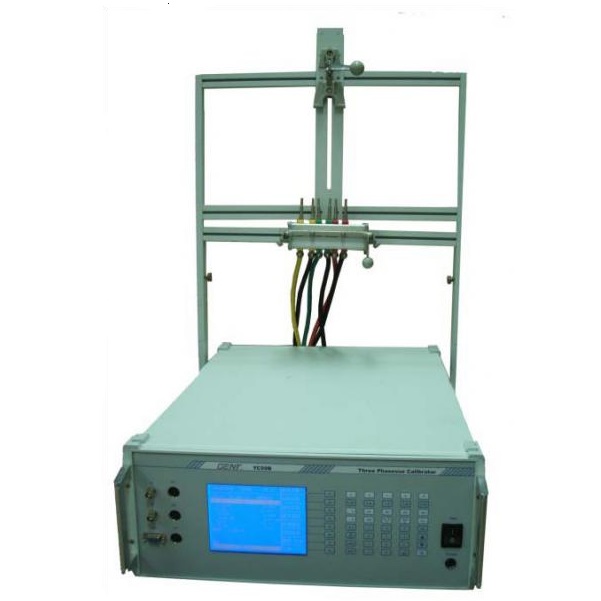

GENY YC99B Three Phase Portable Meter Test Equipment (0V-450V, 1mA-120A)

Voltage

- Test voltage output (Phase-Neutral): 3*(0V – 450V)

- Power of the Voltage output: Max.3*30A

- Resolution: 0.01%

- Accuracy: 0.1%

- Stability: 0.01%/120s

- Distortion factor: <0.3% for linear resistance load

Current

- Test current output: 3*(1mA-120A)

- Power of the current output: Max.3*100VA

- Resolution: 0.01%

- Accuracy: 0.05%

- Stability: 0.01%/120s

- Distortion factor: <0.3% for linear resistance load

Phase angle

- Phase angle range: 0 -- 360°

- Resolution: 0.1°

- Accuracy: 0.2°

Frequency

- Range: 40Hz–70Hz

- Resolution: 0.005Hz

Voltage Supply: 220V±10% 50/60Hz±2Hz

Ambient temperature: -10°C - +40°C

Relative humidity: 35%-85%

Dimensions(W×H×D) (mm): 445×180×680

Weight(kg): 40
