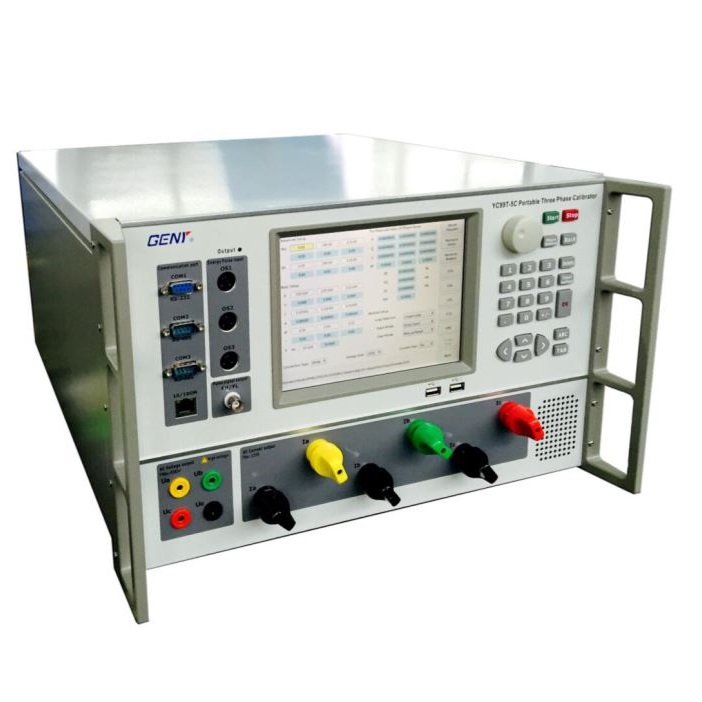

GENY YC99T-3C Three Phase Portable Meter Test System (57.7V-660V, Max.30VA)

Voltage

- AC Voltage Range: 57.7V-660V

- Power of the Voltage output: MAX.30VA

- Resolution: 0.01%

- Accuracy: 0.1%

- Stability: 0.01%/180s

- Distortion factor: 0.2%

Current

- Test current output: 1A-50A

- Power of the current output: Max.50VA

- Resolution: 0.01%

- Accuracy: 0.05%

- Stability: 0.01%/180s

- Distortion factor: <0.3% for linear resistance load

Frequency

- Range: 40Hz–70Hz

- Resolution: 0.005Hz

Voltage Supply: 220V±15% /110V±15% (optonal)

Ambient temperature: 20°C-30°C

Relative humidity: ≤85%

Dimensions(W×H×D) (mm): 500x440x180

Weight(kg): 46
