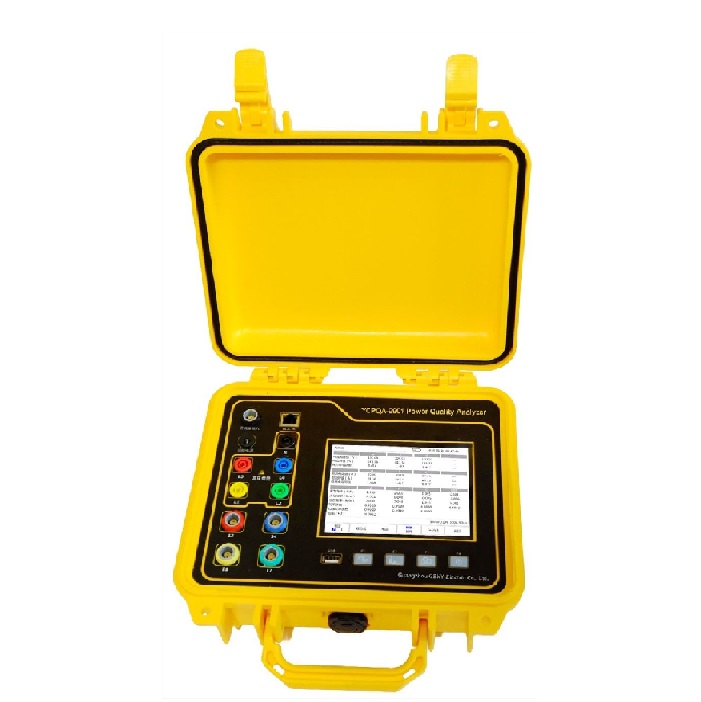

GENY YCPOA-9001 Power Quality Analyzer (0-500V)

ltem: Range / Accuracy

- Voltage: 0-500V / 0.1%

- Current: 10A/100mV,100A/100mV / 0.5%

         1000A/100mV, 3000A/100mV / 1.0%

- Frequency: 42.5-69Hz / 0.005Hz

- Voltage peak factor: 0-2.8 / 2%

- Current peak factor: 0-10 / 2%

- 3 phase Voltage unbalance: 0-100% / 0.2%

- 3 phase Current unbalance: 0-100% / 0.5%

- Power factor: -1.0000-0-1.0000 / ±0.005

- Displacement power factor: -1.0000-0-1.0000 / ±0.01

- Power: - / 1%

- Energy: 0-999999999.99999MWh / 1%
