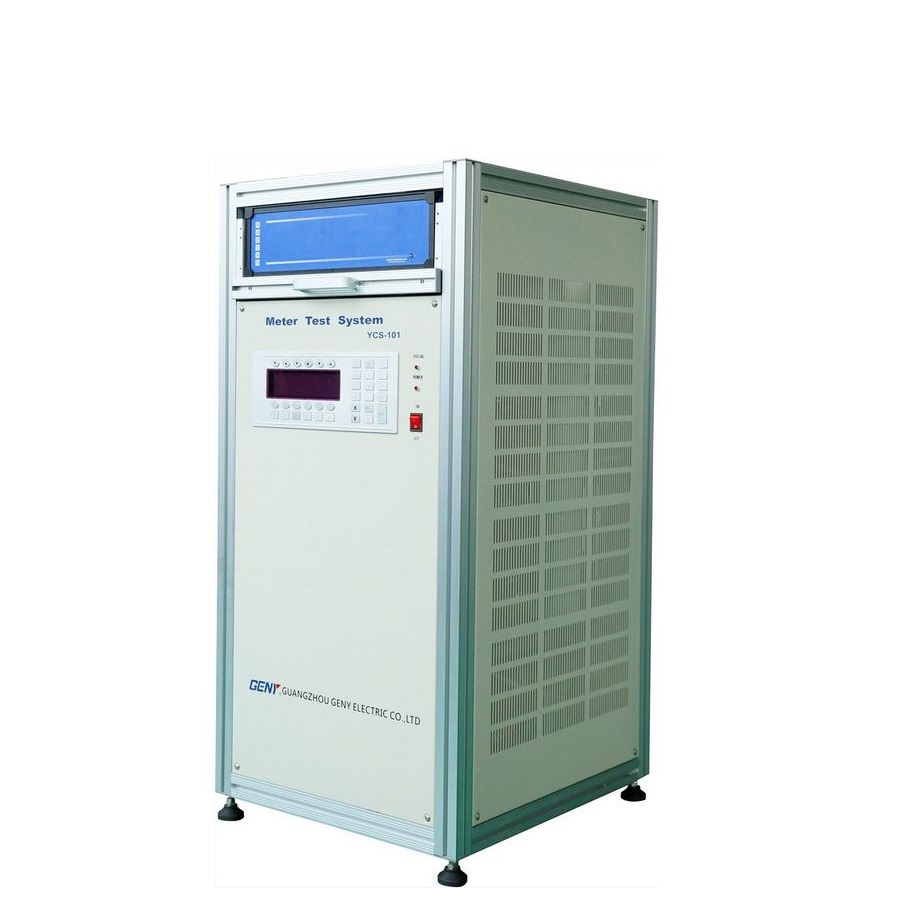

GENY YCS-101-1200 Single Phase Power Source (Max.500VA, 1000VA)
制造商: GENY Model: YCS-101-1200 来源: China 保障: 12 Month - 报价要求
- 联系
Voltage
- Test voltage output(Phase-Neutral): 24V-300V or customized
- Power of the voltage output: Max.500VA
- Resolution: Better than 0.01% of full scale value of range
- Setting accuracy: Better than 0.05% at the final range value
- Stability: Better than 0.005%/h(integration time 150s)
- Load regulation from 0-max.load: Better than 0.01%
- Distortion factor: Better than 0.3% for linear resistance load
- Harmonics: 2nd-41st free programmable
Current
- Test current output: 1mA-120A/200A
- Power of the current output: Max.1000VA
Phase angle
- Range: 0-360°
- Resolution: 0.01°
- Setting accuracy: 0.1°
Frequency
- Range: 45Hz-65Hz
- Resolution: 0.01Hz
Error display
- Type of error display: Red LED
- Resolution of the error displays: 8 digits
