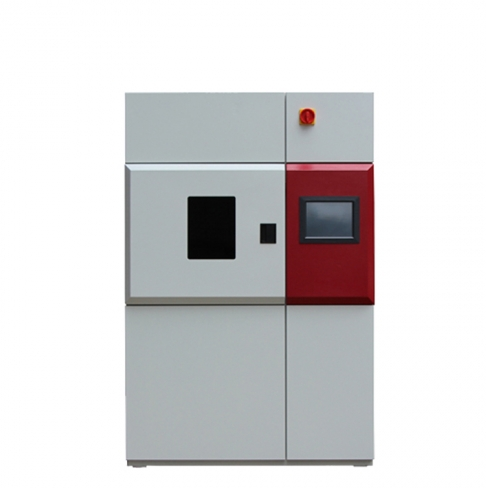

GESTER GT-3000-2 水冷却耐候性试验机 (0.6-3.08 W/m2, 4700cm2)

Irradiation source (water-cooled long xenon arc lamp): 4500W

Exposure area: 4700cm2

Sample holders capacity:

ISO: 135x45mm 47 pcs

Or AATC: 100x75mm,  35pcs

Average lamp life: 1000 hours

Sample rack rotating speed: 1-7rpm (adjustment)

Sample rack outside diameter: 550mm

Chamber temp range: 20-93℃, ±1℃, resolution: 0.1℃

BPT: 35-125℃, ±1℃

BST (option): 35-120℃, ±1℃

Chamber humidity:

Light cycle: 10-70%RH, resolution: 0.1%

Dark cycle: 30-95%, resolution: 0.1%

Irradation control range:

  • 0.6-3.08 W/m2 at 420nm (option: 340nm, 420nm, 300-400nm and 300-800nm)

  • Accuracy: ±0.02W/m2 at 420nm

  • Digital setting, closed-loop automactic compensation
