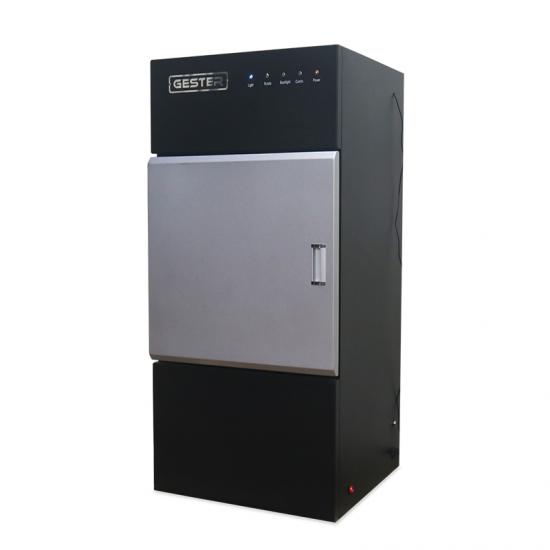

GESTER GT-C22 Automatic Fabric Drapability Tester

Drape Coefficient Range: 0-100%

Accuracy: ±1.5%

Aesthetic Coefficient: 0-100%

Diameter of Specimen Clamp: 120mm

Dimension of Specimen(circular): 240mm, 300mm, 360mm

Rotate Speed: 3-300±1r/min

Light Sourcing: DV 12V 100W for microscope

Power Supply: AC 220V 50/60HZ

Dimensions(LxWxH): 600x570x1070mm

Weight: 60kg

Standard accessories:

  • Cable Connect with PC

  • Stainless Steel Calibration Plate(30%, 50%, 70%)

Power Line

Optional accessories:

  • Desk Top Computer

  • Other Sampling Template
