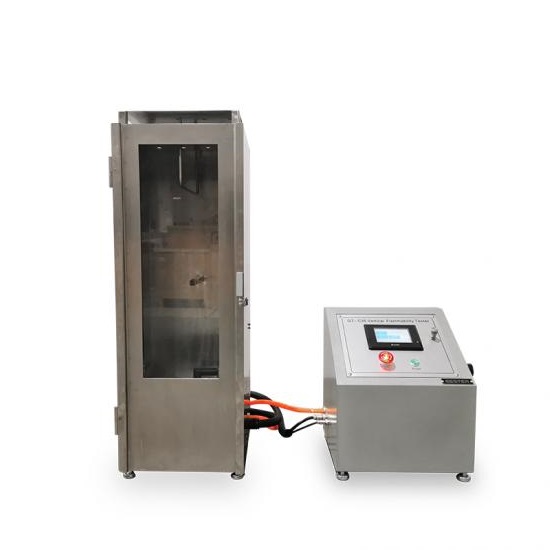

GESTER GT-C35A-2 立式燃烧性能测试仪 (442*76*12.5mm,356x51mm)

After flame time: 0-999.9s resolution 0.01s

After glow time:  0-999.9s resolution 0.01s

Burning time: 12s (adjustable)

Nozzle:

Inner diameter: 10^-0,5mm

Angle: 90°C

Dimension of specimen holder

Out frame: 442*76*12.5mm

Inner frame: 356x51mm

Testing flame height: 38mm

Distance between nozzle top and specimen: 19mm

Tearing weights: 100g,200g,300g,475g

Power supply: AC 220V 50/60hz

Dimensions: 600x450x885mm (LxWxH)

Weight: 44kg

Standards: ASTM D6413

Standards accessories:

4pcs: Tearing weights

1pc: Air supply device

1pc: Sample holder

1pc: Flame measuring scale

1pc: Power line

Optional accessories:

Optional: Φ11mm Nozzle

Optional: Φ10mm Nozzle

Optional: CFR1615,1616 holder and tear weights

Optional: ASTM D6413 holder and tearing weights

Optional: CALIF TB-117 holder
