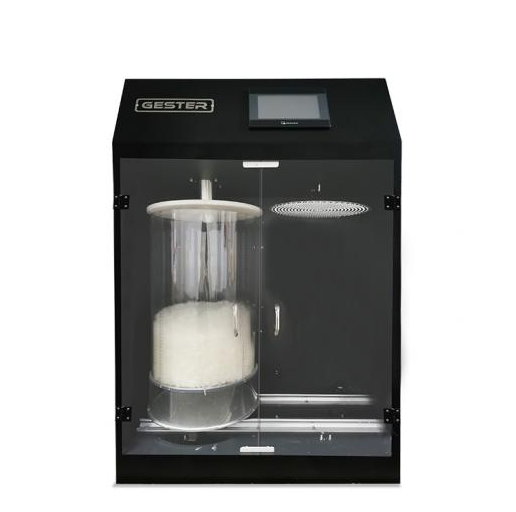

GESTER GT-C43B 羽绒填充力自动测试仪

Measurement Accuracy: 0.1mm

Height: 750 mm, Conforms to New National Standard.

Test Speed: 0~1000 mm/min, Can Be Set

Cylinder inner diameter:

• Standard Accessories: Ф288mm(BSEN12130,IDFB)

• Option Accessories: Ф290 mm (JISL 1903),Ф240 mm (FZ/T80001)

Test Platen:

• Standard Accessories: 94.25g:Ф284mm(BSEN12130, IDFB), material: aluminium sheet

• Option Accessories: 120 g: Ф285 mm (JISL 1903), 68.4g :Ф 240mm (FZ/T80001), material: aluminium sheet

Air Supply Velocity: 2～40L/S , Can Be Adjusted.

Compressing Plate Up and Down Speed: 1~1000mm/min, Can Be Set.

Descent Speed of Compressing Down: 1-1000mm/min, Can Be Set.

Time of Blowing: 0-999s, Can Be Set.

Time of Compressing: 0-999s, Can Be Set.

Power Supply: AC220V±10% 50/60Hz 100W

Mainframe Dimensions （L×W×H）: 50×55×120 cm

Weight: 50kg
