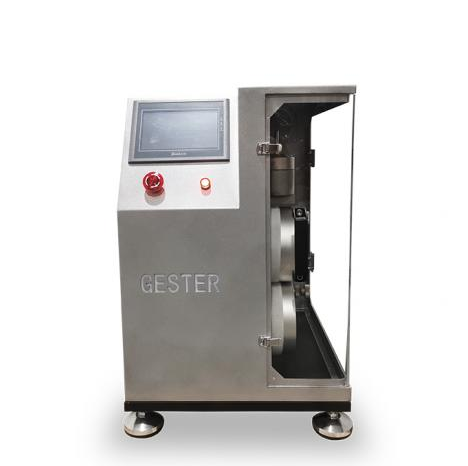

GESTER GT-K19 钩环紧固件疲劳试验机 (1±0.1N/mm)

Control method: PLC touch screen controlled

Sample dimension: length: 540±10mm, width: 20-50mm

Upper idling drum: diameter: 162.5±0.5mm

Under driven drum: diameter: 160±0.5mm

Drum width: 70mm

Clamp slot: width: 4mm, length: 55±2mm

Test speed: 60±5r/min

Reversal intervals: 30±5s

Test load: 1±0.1N/mm

Test times: 5000rpm

Power supply: 1∮AC220V 50/60HZ

Dimensions: (LxWxH): 55cmx45cmx65cm

Weight: 55kg

Detail

Datasheet
