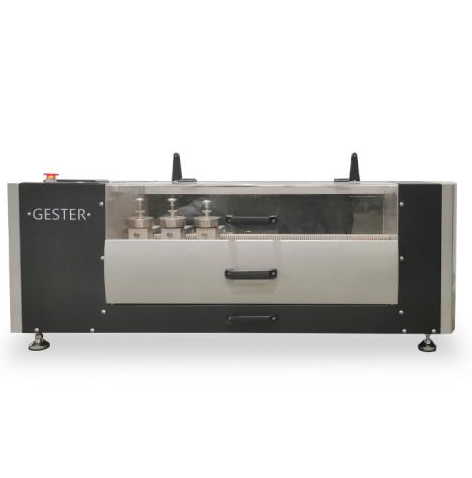

Used to determine wear performance test of materials like elastic material, rubber, tires, conveyor belts, conveyor belts, shoe soles.
Test positions: 3
Control Mode: Touch screen controlled
Diameter of wear wheel: 150mm
Specimen dimension: ø16.2 mm x thickness 6-10 mm
Specimen moving speed: 4.2 mm/r
Weights: Holder 2.5N, can be used arbitrarily with optional accessory 2.5N, 5N (each for one)
Wear wheel speed: 40±1rpm
Inclination angle: 3°, Test piece support shaft of test piece becomes vertical angle with roller.
Roller length: 460mm
Wear stroke: 40m
Power supply: 1∮AC 220V 50/60HZ 3A
