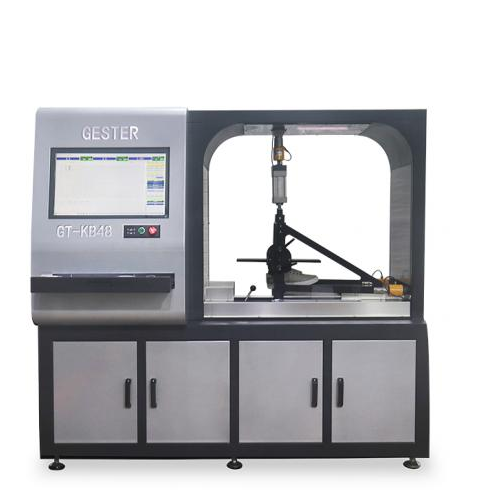

GESTER GT-KB48 防滑试验机 (1000N )

Vertical load cell range: 1000N

Horizontal load cell range: 1000N

Sliding speed: (0.3±0.03)m/s

Static contact time: 0.5s

Test normal force:

500±25N, For footwear of European size 40 (UK size 6.5) and above

400±20N, For footwear of European size below 40 (UK size 6.5)

Wedge angle gauge: 7°

Control method: Computer-controlled

Monitor: 19-inch

Test floor: Pressed ceramic tile floor, stainless steel plate

Power supply: AC 220V 50/60HZ

Dimensions: 180×90×130 cm

Weight: 240 kg

Standards accessories:

  • 7°Wedge angle gauge

  • Shoe last fixture

  • Prosthetic foot fixture

  • 180×90×90mm calibration rubber fixture

  • Stainless steel plate

  • 100×70mm steel block

  • Power line
