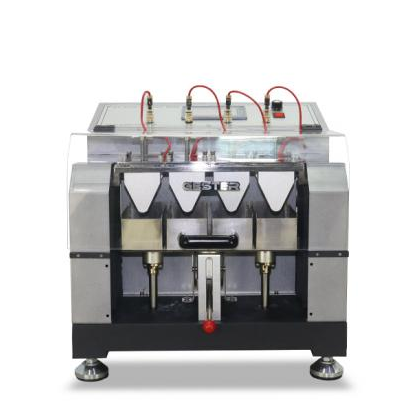

GESTER GT-KC05-3 防水试验机

Used to determine the resistance of leather, artical leather, fabric and so on material to water penetration on flexing

Position: 4

Control method: Touch-screen control, 0~999,999

Clamps: V-shaped

Clamps tip radius: 7.5±0.5mm

Moving fixture flexing displacement: Non required

Moving fixture flexing angle: 32 ± 1 °

Test speed: 90±5 r/min

Shutdown method: Electrode induction

Sample size: 114  x 114  mm

Power supply: 1∮AC 220V 50/60HZ

Dimensions( L x W x H ): 49x45 x45cm

Weight: 55 kg

Standards: SATR TM34 Type 2, ISO 5403-2

Standard Accessories:

• Stainless steel ball: 550g

• Electrode induction line: 4pcs

• Power line: 1pcs
