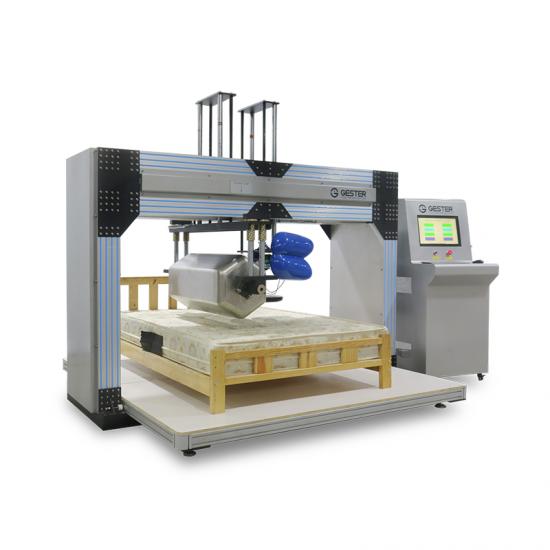

GESTER GT-LA08A Mattress Comprehensive Performance Tester

Controller: Computer Control

Motor: Servo Motor

Power sensors: 5000N, American Celtron

Durability test:

• Cylinder Shape: Round

• Cylinder Length: 1000 mm

• Cylinder Weight: 1400 N

• Diameter of roller: 300 mm

• Test speed: 0-20 cpm (adjustable)

• Stroke length: 0--1000mm

Hardness value & Firmness rating test & Height loss test:

• Pressure plate diameter: ￠355 mm

• Pressure plate spherical radius: R800 mm

• Test speed: 0.001--500 mm/min

Bed edge durability test:

• Test load: 1000 N

• Test cycles: 5000 cycles

• Maintain time: 3±1s

Power supply: 1∮, AC  220V  50/60Hz

Dimension (W x D x H): 280 x 250 x 180 cm

Weight (Kg): ≈1000Kg

Standards: BS EN 1957, EN 1725, QB/T 1952.2,

Standard accessories:

• EN Round Roller

• Hardness loading pad

• Edge loading pad
