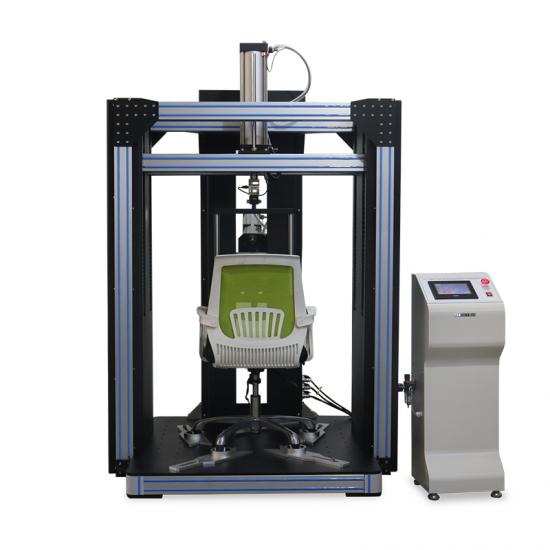

GESTER GT-LB04-1 Chair Seating And Back Testing Machine

Working position: 1

Seat surface load capacity: 2000N

Backrest load capacity: 2000N

Seat surface height: 15 - 70cm

Testing time: 0-99999 ( can be adjustment)

Control method: PLC touch screen control

Lifting method: Automatic lifting

Power: 1 phase AC 220V 50/60Hz

Dimension (WxDxH): 180x150x200cm

Weight: 500kg

Standard Accessories:

  • GT-LB01-1A Loading point template 1 pc

  • GT-LB01-2A Seat loading pad 1 pc

  • GT-LB01-3 Smaller seat loading pad 1 pc

  • GT-LB01-4 Back loading pad 1 pc

  • GT-LB01-5 Local loading pad  1 pc

  • Stationary fixture  1 pc

  • Stops  1 pc

Optional Accessories

  • GT-LB01-7 Impact hammer

  • GT-LB01-1B Loading point template

  • GT-LB01-2B Seat loading pad

  • GT-LB01-10 BIFMA cumulative Weight
