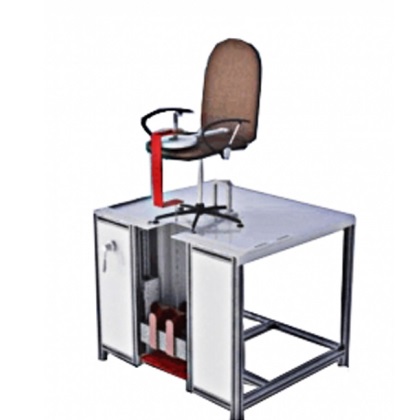

GESTER GT-LB06A Chair Front Stability Testing Machine (600N )

Test load: 600N (135 lbf.) (Accumulated weight)

Loading point number: 1 ponit

Loading point: Seat surface center, 60mm from front edge

Weights basket: Manual controlle lifting

Seat surface load pad: Diameter: 200mm, camber surface: R300mm

Loading rod:

Diameter: 19mm

End: A type: Spherical SR19mm; B type: 45°Taper

Dimensions: 120×100×90cm

Weights: ≈300Kg

Standard Accessories

  • Weights basket 1 pc

  • Seat surface load pad 1 pc

  • 600N Load weights 1 Set

  • Weights holding device 1 pc

Option Accessories

  • FB-200N IMADA push pull scale

  • 500N Load weights for EN 1335-3-2009 Section 7.1.3
