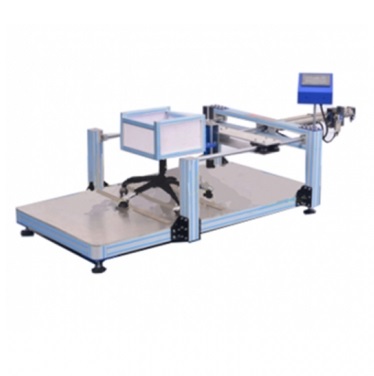

GESTER GT-LB09 Caster And Base Durability Testing Machine

Control System: PLC touch screen

Load weights: 102kg (225Lb) --113kg (250Lb)

Moving stroke: 1000 ± 250 mm

Obstacle block: Width: 51mm, Thickness: 3.2mm, 3pieces removable

Driving method: Air Cylinder

Air source: 6kgf / cm2 or more stable Air supply

Test speed: 10± 2 times/min

Testing times: 0-999999 times, settable

Dimension(W*D*H): 200x120x130cm

Power supply: 1∮, AC 220V 50Hz 5A
