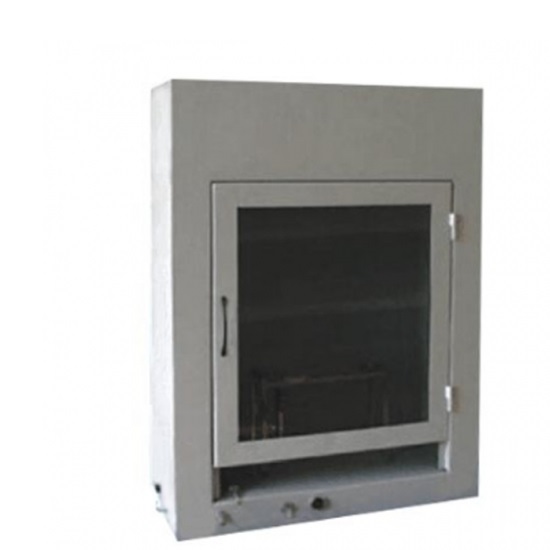

GESTER GT-LE01B Foam Material Horizontal Combustion Testing Equipment

Burning pipe diameter: 9.5±0.5mm

Burner wing top:

Opening length: 48±1mm,

Width: 3±0.2mm

Burning nets: 215×75mm. The ends are folded at right angles. Height  13mm

Flame height adjustment: 10-60mm

Flame angle: 0°

Ignition time range: 0-99.99s

Residual combustion time range: 0-99.99s

Time accuracy: 0.01s

Inner box size: 600×300×760mm

Dimensions: 650×350×1000mm

Weight: 50kg

Power: 1∮, AC  220V  50Hz

Standards: ISO3582
