Load capacity: 15 kg
Shaking platform: 450 x 450 mm
Shaking frequency: 20 - 300 rpm
Shaking amplitude: 30 mm
Ambient temperature: +10 °C to +50 °C
Timer: 1 minute - 99:59 hours or continuous operation
RS 232 serial interface for trouble-free data transfer
Exterior dimensions (W x D x H): 510 x 625 x 145 mm
Electrical connection: 230 V * / 50 or 60 Hz ** / 65 W
Gross weight: 22 kg
Specifications and features

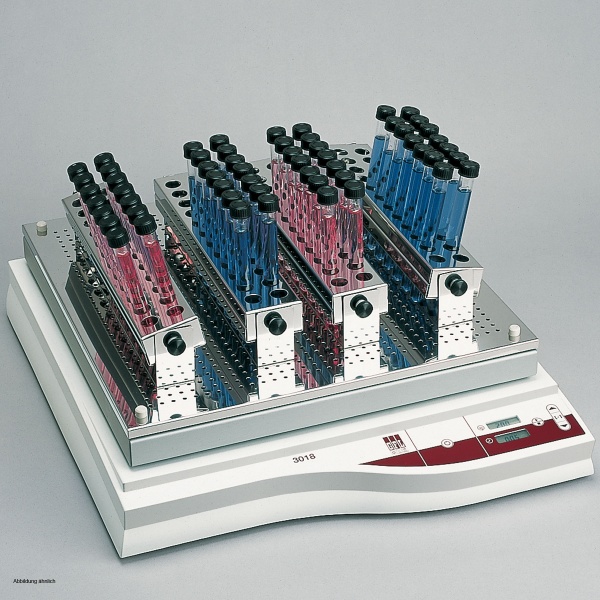

Versatile, powerful and long-lasting reciprocating (back-and-forth) shaker.
User-friendly microprocessor technique
Excellently applicable for continuous operation.
Universally applicable through the large amplitude, low noise.
Digital shaking frequency readout and setting via LC-display, in steps of 1.0 rpm, gentle start-up.
Remaining time indication through LC display.
RS 232 serial interface for trouble-free data transfer.
Clearly laid out control panel for easy operation.
An a.c. motor with overload protection drives the unit.
Compact, low-wear counterbalanced drive mechanism, ensuring high stability and dependability for continuous operation.
Constant speed, independent of load.
Housing made of high impact strength polystyrene.
Comprehensive range of accessories
Applications: The producers of suspensions and emulsions know this shaker well. The shaking platforms jerky back-and-forth motion creates high turbulence, thus thoroughly mixing the media. This is a vital prerequisite, for example, in medical diagnostics, or in foodstuffs or environmental analyses. The unit is well-suited for use in laboratories, incubation and moderating rooms in ambient temperatures between +10 and +50 °C.
