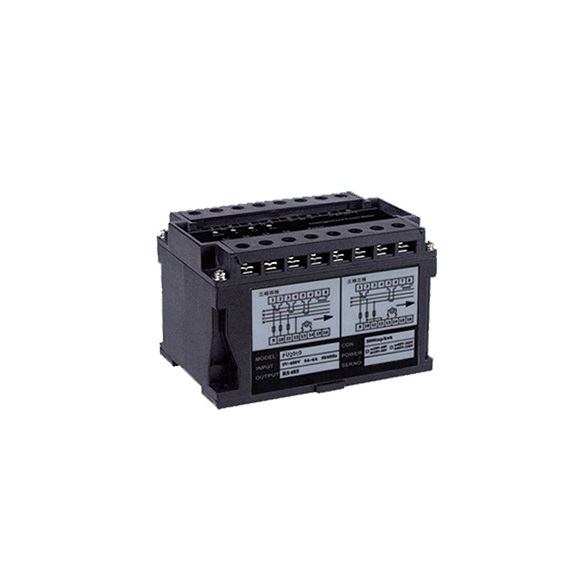

GFUVE FU2010小型电动太阳能三相电能表

Electrical parameters

Power supply (AC/DC):

        AC 85-265V / DC 85-330V or 18-90V DC

        Power consumption: <3VA

Measurement parameters: Voltage (Ph-N); Voltage (Ph-Ph); Current; Frequency; PF;

Active Power (W); Reactive Power (Q) ; Apparent Power( S)


        Forward active power energy

        Reverse active power energy

        Forward active power energy

        Reverse reactive power energy

Measuring range: 30-600V, 0-6A, 45-65Hz, -1 ~ 0 ~ 1

Measuring accuracy:

        Frequency: 0.1%

        Electric energy: 0.5%, 1.0%

        Voltage: 0.2%±0.1V

        Current: 0.2%±0.001A

        Power: 0.5% ±0.4W

        Power Factor: 0.5% ±0.001

Display: Indication of power supply, energy pulse and communication.

Communication: Support RS485 interface port, 32 (128) networking, Modbus-RTU communication protocol.

Analog output (expansion module): DC 4-20mA output, programmable to any measured parameters.


        Measuring system: 3P4W/3P3W etc.

        Transformation ratio: PT, CT.

        Communication: Address: 1-247; Baud: 1200-19200;

        Parity bit: N/E/O

        Energy: reset

Connection mode: 3P4W, 3P4W BAL, 3P3W, 3P3W BAL, 1P2W, 1P3W

Mechanical parameters

Dimensions (L x W x H) (mm): 110x75x72.6

Mounting: 35mm DIN sliding-way or M4 screws

Environmental conditions

Temperature: -15 to +55°C

Humidity: 20%-95%RH, without condensation
