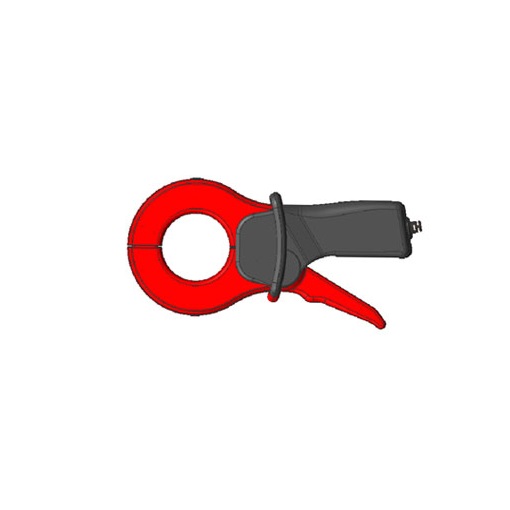

GFUVE S50 1200A 1MV/A 和 1MA/A 输出交流电流钳位 CT

ELECTRICAL PARAMETERS

Ratio: 1000: 1 , 2000:1, 1000:5 (customized)

Accuracy class: 0.1%, 0.2%, 0.5%

Primary current: 0 - 500A AC and 0-1000A AC

Signal output: 1mV/A, 1mA/A

Secondary voltage: 0 - 0.5V AC and  0 - 1V AC;

Secondary current: 0-1A or 0-5A AC

Max. Cont. Input current: 1200A

Load capacity: ≤4Ω

Over voltage category: CAT III 600V

Frequency range: 10Hz-10MHz

Dielectric strength: 3KV 50Hz/60Hz  at 1minute

Temperature range: -40°C to +55°C

Outputv2.5 meter cable with D01 or BNC connector

Max. voltage not insulated conductors: 600 V

Standard: EN 61010-1, EN 61010-2-032, IEC60044-1

Installation: clamp type

Output mode: lead output(2.5m)

Accuracy (1000A Range)

        0-10A: ≤0.5%

        10-100: ≤0.2%

        10-1200A: ≤0.1%

Phase Shift(1000A Range)

        0-10A: ≤0.5°

        10-100: ≤0.2°

100-1200A: ≤0.1°

MECHANICAL PARAMETERS

Dimensions (L x W x H) (mm): 105 x 218 x 30

Weight (g): 650

Holding wire diameter (mm): φ52

Max. jaw opening (mm): 52

Jaw color: Red & Grey

Material: PC+ABS, UL94 V0
