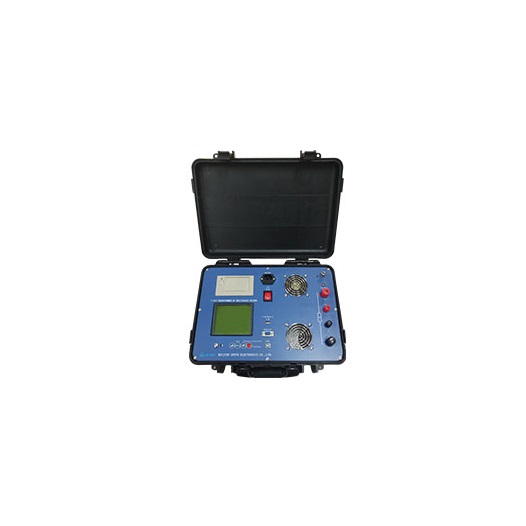

GFUVE T-213 变压器DC电阻测试仪 (100Ω-20kΩ )

ELECTRICAL PARAMETERS

Power supply: Single phase AC 220V±10% or 110V±10%, 50/60HzAC

Cooling way: intermittent air cooled

Current output: 10mA, 100mA, 1A, 5A, 10A, 20A

Test voltage: DC 28V

Test range: 1mΩ-1Ω (20A); 1mΩ-2Ω (10A); 1mΩ-4Ω (5A); 100mΩ-20Ω (1A); 10Ω-200Ω (100mA); 100Ω-20kΩ (10mA)

Accuracy: 0.2%±2bit

Test voltage: DC 28V

Resolution: 0.1μΩ

Max storage volume: 200 SETS

LCD: 5.7″black and white LCD display

Communication: RS232 and USB communication interface

Printer: internal installed 58mm wide thermal printer

Standard: DL/T 596-1996, IEC61010-1, IEC61326-1, GB6587.1-86

MECHANICAL PARAMETERS

Dimension (L×W×H) (mm): 415x319x168

Weight (kg): 7

ENVIRONMENTAL CONDITIONS

Operating temperature: -20°C ~ 50°C

Storage temperature: -40°C ~ 70°C

Relative humidity: ≤85%RH
