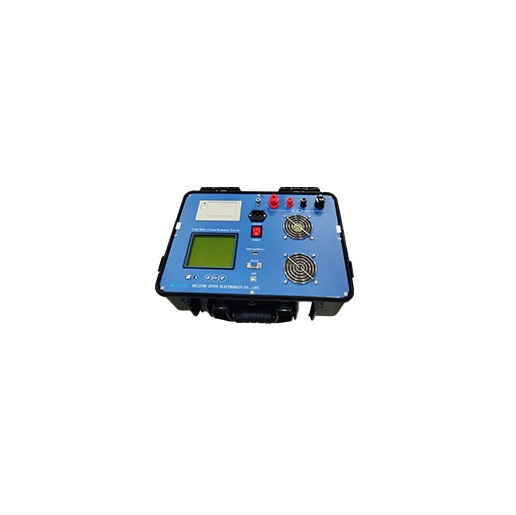

GFUVE T-216 便携式600A接触电阻测试仪 (0-3000.0μΩ)

ELECTRICAL PARAMETERS

Power supply: Single phase AC 220V±10% or 110V±10%, 50/60HzAC

Cooling way: intermittent air cooled

Current output: constant current: 100A, 200A, 300A, 400A, 500A, 600A.

Test time: 100A: 5-60Sec, 200A：5-30Sec, 300A-600A: 5-10Sec

Test range: 0-20000.0μΩ (100A); 0-10000.0μΩ (200A); 0-6000.0μΩ (300A); 0-5000.0μΩ (400A); 0-4000.0μΩ (500A); 0-3000.0μΩ (600A)

Accuracy: 0.5%±2bit

Resolution: 0.1μΩ

Max storage volume: 200

LCD: 5.7″black and white LCD display

Communication: RS232 and USB communication interface

Printer: internal installed 58mm wide thermal printer

Standard: DL/T 596-2005, IEC61010-1, IEC61326-1

MECHANICAL PARAMETERS

Dimension (L×W×H) (mm): 490x345x185

Weight (kg): 14

ENVIRONMENTAL CONDITIONS

Operating temperature: -10°C ~ 50°C

Storage temperature: -20°C ~ 70°C

Relative humidity: ≤85%RH
