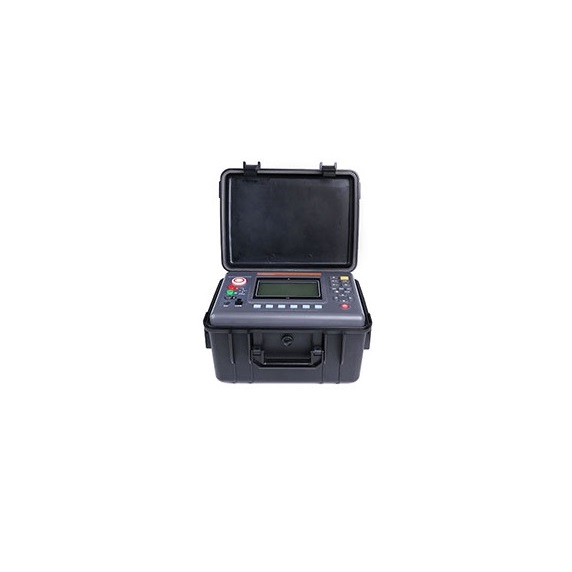

GFUVE T-3630 高压绝缘电阻测试仪 (0.01MΩ～50TΩ)

ELECTRICAL PARAMETERS

Function: Insulation resistance test, voltage test, DC current test, capacitance test

Accuracy: 3%

Power Supply: 12V rechargeable battery

Rated voltage range: 100v, 250V, 500V, 1000V, 2500V, 5000V, 10KV, 15KV

Insulation resistance range: 0.01MΩ～50TΩ

Resolution: 0.01MΩ

DC Test Voltage Range: 0～1000V; Resolution: 0.1V

AC Test Voltage Range: 0～750V; Resolution: 0.1V

DC Current: 0.1nA～6mA; Resolution: 0.1nA

Capacitance: 10nF～50uF; Resolution: 10nF

Output short-circuit Current: ≥ 6mA

Absorption Ratio and Polarization Index Measurement: Yes

Backlight: Yes

LCD display: 108mm×65mm, 4-bit LCD display, gray screen backlight

Communication: USB Port

Data Storage: 500 GROUPS

Alarm Function: Yes

Power Consumption: Standby: 30mA Max (backlight off), Turn on backlight: 42mA Max, Measure: 300mA Max (backlight off)

Insulation Resistance: ≥50MΩ (500V between circuit and shell)

Withstand voltage: AC3kV/50Hz 1min (between circuit and housing)

Standard: IEC61010-1, IEC1010-2-31, IEC61557-1,5, IEC60529(IP54), pollution grade 2, CAT Ⅲ 300V

MECHANICAL PARAMETERS

Dimension (L×W×H) (mm): 240x188x85

Weight (kg): 2.75

ENVIRONMENTAL CONDITIONS

Operating temperature: -10°C ~ 50°C

Storage temperature: -20°C ~ 70°C

Relative humidity: <90%RH
