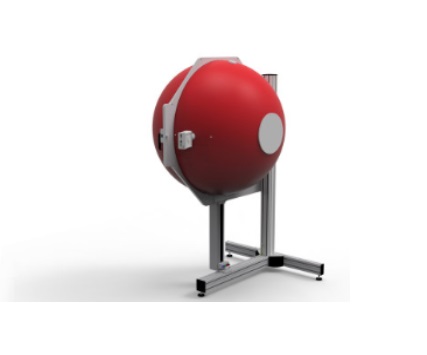

Gigahertz-Optik ISD-100HF-V06 Integrating sphere (350 nm ~ 1050 nm)

-Main features:

Integrating sphere with 100W auxiliary lamp, height adjustable sample holder and 254 mm application port.

Integrating sphere with a 100 cm diameter. One half of the sphere can be opened. Height-adjustable sample holder.

ISD-100HF-V06 for Operation of the test lamps inside and outside the sphere.

-Measurement range

Luminous flux: Integral 1 mlm to 4 klm,

Spectral for typical white LEDs:  0.1 lm to 700000 klm

Spectral radiant flux: 1E-5 W/nm to 3.3E4 W/nm

Spectral range: 350 nm to 1050 nm

-Typical applications: Inspection of incoming products (LED lamps), in-line quality assurance, design

-Calibration: Factory calibration. Traceable to international calibration standards

-Typical measurement time

10 lm: 450 ms

100 lm: 45 ms

1000 lm: 4,5 ms

-Calibration:

Spectral radiant power

Calibration uncertainty luminous flux ±4%
