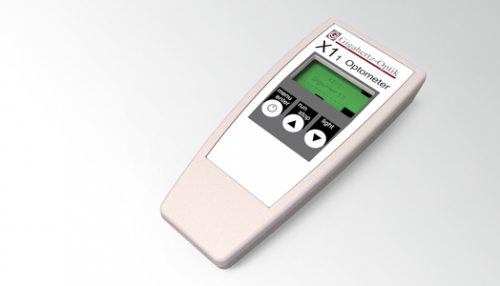

Gigahertz-Optik X1-1 Optometer respectively Current Amplifier for Radiometric or Photometric Applications (256 data sets)

-Measurement range: Wide dynamic current measurement range from 0.1 pA (noise equivalent signal) up to 200 µA. Seven gain ranges with manual or automatic selection. Measurement range in absolute units with given by the detector heads responivity and calibration.

-Calibration: Calibration and comparison of the current responsivity in each of the seven gain ranges. Memory for calibration data of several detector heads for measuremen in the absolute unit of the selected detector head.

-Detector interface: 9pin MDSM9 socket, 4 inputs

-CW integration time: 1 ms – 1 s

-Sampling rate: internal sampling rate ADC 250 µs

-Offset correction: Correction range transcending

-Parameter adjustment: Remote control or front panel buttons (menu), set values permanently stored (EEPROM)

-Calibration:

X1-1: max. 256 data sets (one data set can include up to 4 channel entries) total stored in device EEPROM

-Dose:

+The maximum dose to be displayed on the X1-5/1 device is 99999 TJ/cm² (for W/cm²) or 99999 TJ/m² (for W/m²)

+Maximum time to be set for dose measurement: 255h 59min 59s

-Power Supply:

+Two AA batteries ~ 250 hrs. operation time - backlit display off

+Powered by USB-Interface

-Interface: USB V1.1 (HID Device)

-Temperature range:

Operating: (5 to 40)°C

Storage: (-10 to 50)°C

-Humidity: <80%, non-condensing

-Display:

LCD graphic display 97 x 32 pixel

Display area 14.3 mm x 35.8 mm

Switchable LED-backlight

Text display 4 rows each 14 characters

-Front panel control: 3 buttons, menu system

-Dimensions: 145 mm x 63 mm x 30 mm

compatibel

-Weight: 150g
