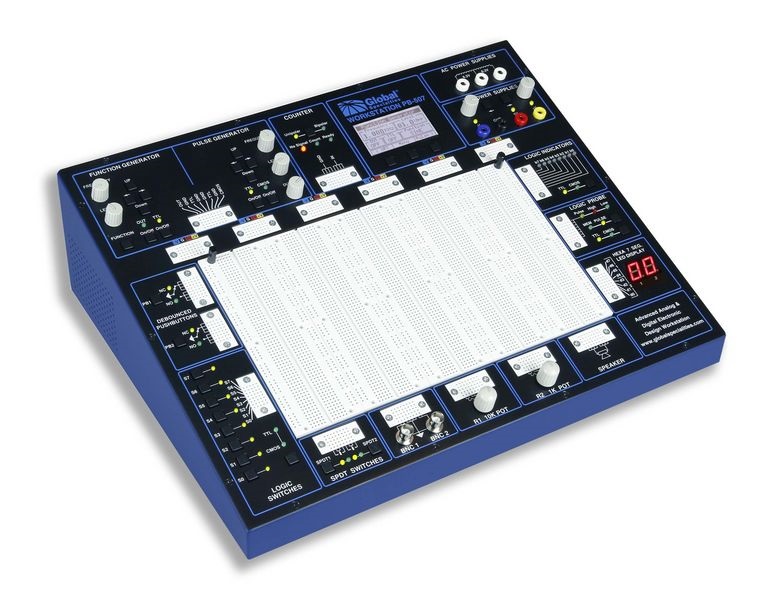

GLOBAL PB507 高级模拟和数字电子设计培训器

Power 3-wire AC input with 110 V / 220 V selector switch
ower Supplies Fixed 5 VDC @ 1 A
Variable -20 to +20 VDC @ 0.5 A
Fixed 12.6 VAC center-tapped @ 100 mA
Computer Interface USB 2.0
Function Generator Frequency Range: 0.1 Hz to 1 MHz selectable in 7 ranges
Output Voltage: 10 Vpp
Output Impedance: 600 Ω ±2%
Output Mode: TTL or CMOS (switch selectable)
Output Waveforms: Sine, square, triangle
Pulse Generator Frequency Range: 0.1 Hz to 1 MHz selectable in 7 ranges
Output Voltage: 15 Vpp
Output Mode: TTL or CMOS (switch selectable)
Duty Cycle Range: 10 to 90%
Dimensions  5.5” x 16.5” x 12.75” (H x W x D)
Weight  14.5 lb
