GOOD TECH SMS-RC 标准式转子检测仪 (Rotor Quality, Dynamic Balance, Spectrum Analysis, Vibration Meter)

SMS-RC System

Target measured object: all rotatiing machinery, Ballscrew, Gear box, Linear guideway

Channels: 1

Sampling rate: 20k Hz/s

Diagnostic display:

ISO norm (ISO10816 / ISO2372 / ISO20816) criticality levels

ISO 1940 Dynamic G levels

FFT (steady & unsteady signal), Time waveform

Vibration value (AVG/MAX/Real Time)

Filter feature:

ISO10816 / ISO2372 / ISO20816 Bandpass filter (10 ~ 2k Hz)

FFT Bandpass filter (1 ~ 10k Hz)

Vibration meter Low-pass filter / High-pass filter (1 ~ 10k Hz)

Display units:

Acceleration: g, m/s2

Velocity: um/s, mm/s, in/s, m/s

Displacement: mm, mil

Frequency: Hz, RPM

Data export: All measurements in CSV format / in JPG (screenshoot)

SMS-RC Vibration Kit

USB DAQ:

ADC resolution: 16 Bit

IEPE: 2mA/24V

Input range: ± 5

Accelerometer:

Sensitivity (±10%): 100 mV/g

Measurment range: ±50 g

Frequency range (±3 dB): 0.5 ~ 1000Hz

Temperature range: -54 ~ +121°C (-65.2 ~ +249.8°F)

Weight: 51 gm

Housing material: Stainless Steel

Electical connector: 2-Pin MIL-C-5015

Cable:

Connector: MIL-C-5015 compatible to BNC

Length: 2m

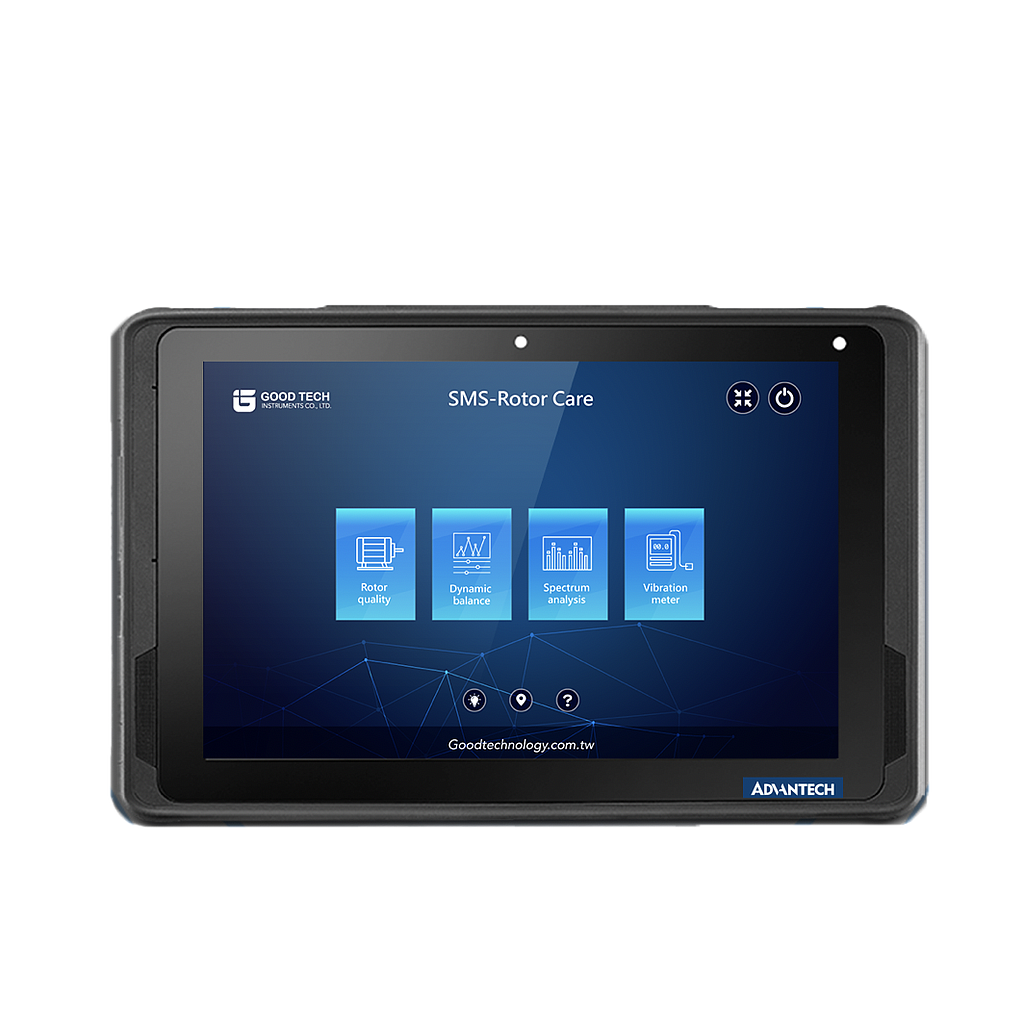

10.1" Industrial Tablet (Option)

Operating system: Windows 10 IOT Enterprise

Processor: Intel Atom x7-Z8750 quad-core, 1.6 GHz (2M cache, up to 2.56 GHz)

Memory: 4GB LPDDR3

Storage: eMMC 64GB, Micro-SD support (upto 128GB)

Display: 10.1" FHD LCD WUXGA 1200x1200

Baterry:

Hot-swappable battery with capacity LED indicators; 10.8V, 2400 mAh, 26 WHr

Operating time: 4 ~ 6 Hr (depending on usage scenario)

Charging time: < 3hr

Standard I/O: 1 x Micro HDMI, 1 x USB 3.0, 1 x combo audio jack, 1 x 19 VDC-in jack, 1 x SIM card reader, 1 x micro SD card reader

IP rating: IP 65

Operating temperature: -10 ~ 50°C (14 ~ 122°F)

Humidity: 10 ~ 90% @ 40°C (104°F) non-condensing

Dimensions (W x D x H): 80 x 18.3 x 180.1mm (11 x 0.7 x 7.1 in)

Weight: 980 g/2.16 lb

Certifications: FCC, PTCRB, CE, CB, UL, TELEC, VCCI, BSMI, NCC, CCC, SRRC, RCM, IC, BIS

Includes:

SMS-RC SW license *1

Accelerometer sensor *1

Accelerometer Magnetic base *1

Accelerometer cable *1

USB DAQ cable *1

Probe *1

Tablet Option

Datasheet

Flyer

Manual

Apart from settings, we also integrated 2 libraries for novice user to get started easier and quicker.

One is rotating machine types and recommended measurement points; the other one is spectrum characteristic patterns for root cause comparison & analysis.
