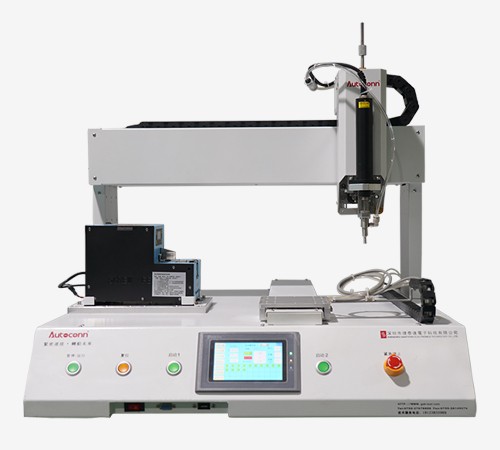

GSK AT-B103 单头单平台锁螺丝机 (M1-M5)

* Size: 700x700x620mm (L*W*H)

* Lock payment range: 400x500x70 (can be customized according to customer products)

* Transmission mode: precision stepping motor/synchronous belt

* Screw extraction method: vacuum suction type

* Suitable screw: M1-M5

* Control system: PLC+ touch screen

* Positioning accuracy: soil 0.02mm

* Lock speed: 1-2 seconds /PCS (depending on screw length)

* Lock payment defective rate: ≤0.2%

* Lock torque: adjustable

* Function description: missing lock/floating lock/slip tooth judgment and alarm

* Hardware configuration: Electrical parts/screw/slide/module are all well-known brands (options)

* Working air pressure: 0.5-0.7Mpa

* Power supply: AC220-240V, 10A

* Applicable products: mobile phones, calculators, navigators, audio, cameras, laptops, tablets, learning machines, small household appliances, LED modules, keyboards, etc
