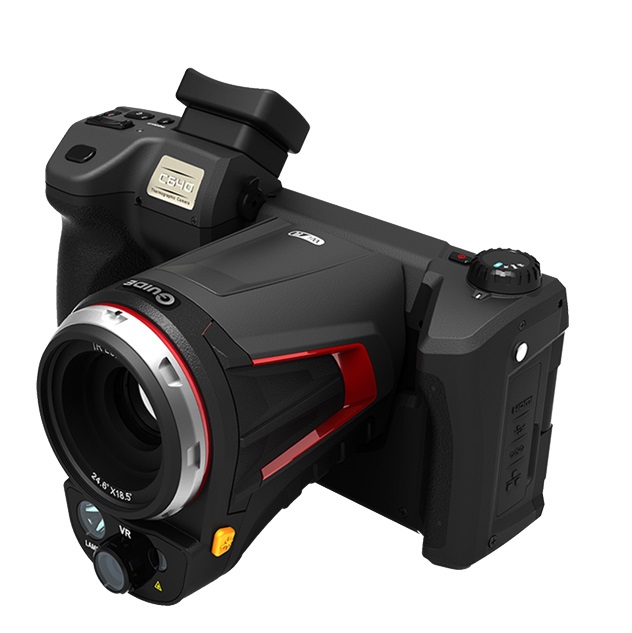

Guideir C640 红外热成像仪 (Realtime HDMI, 640X480, 800°C)

-Imaging Performance
Detector type: VOx UFPA
Spectral range: 8~14μm
Pixel size: 17μm
IR resolution: 640×480
NETD: 40mK
Frame rate: 25Hz
-Standard lens
Field of view(FOV): 24.6°×18.5°
Minimum focus distance: 0.3m
Focal length: 25mm/F1.0
IFOV: 0.67mrad
-Optional wide-angle lens
Field of view(FOV): 45.4°×34.9°
Minimum focus distance: 0.1m
Focal length: 13mm/F1.1
-Optional tele lens
Field of view(FOV): 11.3°×8.5°
Minimum focus distance: 1.5m
Focal length: 55mm/F1.1
Optional High temp lens: Yes
Focus: Electric/Automatic
Digital zoom: 1.1~4
-Visual Camera
Resolution: 5M
Focus: Fixed
FOV: 25°×19°
-Image Presentation
Display: Highlight LCD touch screen
Screen size: 5"
Resolution: 1280×720
Color depth: 24bits
Viewfinder: Yes, 1280×960 LCOS screen
Image modes: IR image, Visual image, MIF, Picture in picture (PIP)
-Measurement Features
Temperature range: Standard -20°C~150°C, 150°C~800°C ; option High temp
800°C~2000°C
Accuracy: ±2°C or ±2% of reading
-Measurement Analysis
Spotmeter: 8
Line : 8
Area: 8
Auto tracking: Full image or object with Tmax/Tmin
Isotherm: Above, below
Delta T: Yes
Emissivity correction: Yes: variable from 0.01 to 1.00
Alarm: Tmax/Tmin
Alarm mode: Color/ voice
-Functions
Laser: Yes
Wi-Fi: Yes
Illuminator: Yes
Digital compass: Yes
Light sensor: Yes
GPS: Yes
Bluetooth: N/A
-Setup
Color Palettes: 8:White Hot, Fulgurite, Iron Red, Hot Iron, Medical, Arctic, Rainbow 1,
Rainbow 2
Language: 21
System setting: Temperature unit, Date and time formats, Watermark, Report
-Image storage
Image format: JPG with temp info
Storage Medium: In camera and SD card
-Image Annotations
Voice annotation: Yes, 60s
Text annotation: Yes
Visual image annotation: N/A
Image marker: Yes
-Video storage
Video format H.264 with or without temp info
Video Streaming: via GigE or Wi-Fi
-Interfaces
Interface: USB, HDMI, SD card, Power, GigE, Tripod
Audio: Microphone and speaker
USB: Micro USB 2.0
HDMI: Micro HDMI
SD card: 16G, up to 32G
-Power system
Battery type: Rechargeable Li-ion battery
Battery voltage: 11.1V
Operating time: ≥4h
Charging temperature: 10℃~35℃
Boot time: 40s
Charging system: In camera or on separate charger
Charging period: 4h in camera, 5h in dual-bay charger
External power supply: 12V
Power management: Automatic shut-down and sleeping mode
- Environmental Parameters
Operating temperature range: -10℃~50℃
Storage temperature range: -40℃~70℃
Humidity: 10%~95%, non-condensing
Encapsulation: IP54
Shock 25g(IEC 60068-2-27)
Vibration 2g(IEC 60068-2-6)
Certification: CE, FCC, ROHS
-Physical Characteristics
Weight (including Battery): 1350g
Dimensions: 206mm×140mm×114mm
Weight of battery: 162g
Dimensions of battery: 73mm×40mm×37mm
Color: Red-black
