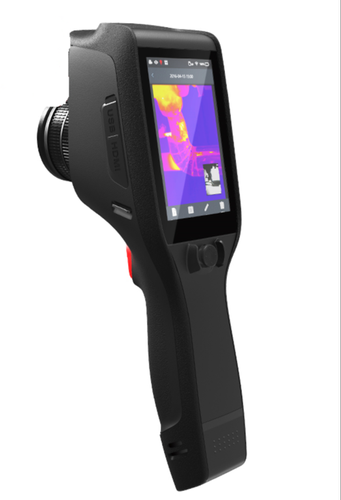

Guide D192F 智能热像仪 (192x144 px, -20℃~350℃)

IR resolution: 192×144 pixels

Detector type: VOx/25μm/7.5~14μm

Frame rate: 25HZ/9HZ

NETD: 50mk

Focal length: 7mm/F1.1

Field of view(FOV): 37.8°×28.8°

Spatial Resolution(IFOV): 3.45mrad

Min focus distance: 1m

Focus: Focus-free

Temperature range: -20℃~350℃

Accuracy: ±2℃ or ±2% of   reading for ambient temperature 15°C to 35°C and object temperature above   0°C

Measurement Area (IR/PIP): 5 X Spot; 2 X Line:; 5 X Area

Temperature range: Operating: -10℃~50℃; Storage: -40℃~70℃

Weight: 735g

Dimensions(mm): 274×97×78

Encapsulation IP54

Certification CE, FCC, ROHS

Standard Accessories: Li-ion battery, Power supply adapter, Adapter plug, Wrist strap, USB cable, HDMI cable, Quick Start Guide, User Manual, Data Download Card,  Capacitive screen gloves, TF card (16GB), Hard transport case

Optional Accessories: Li-ion battery, Pouch, Battery charger, Tripod mount interface, Sunshield, Bluetooth earphone, Extended lens
