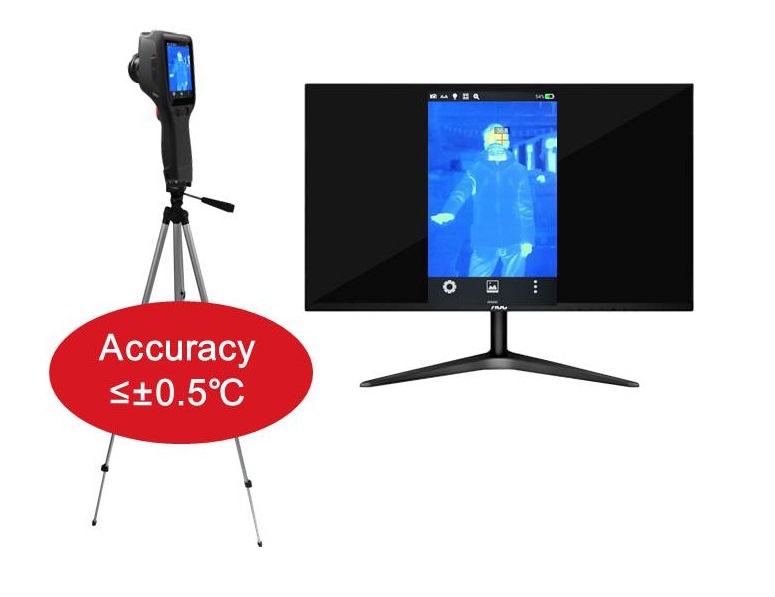

Guide D256FH Fever Screening Thermal Camera (256×192, 20℃~50℃)

IR resolution: 256×192

Detector type: VOx/25μm/7.5~14μm

NETD: ≤80mk

Focal length: 7mm/F1.1

Field of view(FOV): 50°×38°

Focus: Focus-free

Temperature range: 20℃~50℃

Accuracy: ±0.5℃ (target temperature 32℃~42℃)

Measurement Area (IR): 5 X Area

Display: 4" highlight LCD touch screen, 480×800, 24 bits

Image modes: IR image/ Visual image

Brightness & Contrast: Automatic

Data communication interface: MICRO USB 2.0, MICRO HDMI, Power(12V), TF card(Standard 16G, up   to 32G)

Power system

Battery type/Operating time: Rechargeable Li-ion battery (7.2V), operating time≥4h; local charging, charging by   dual-bay charger; Automatic shut-down and sleeping mode available

Weight: 735g

Dimensions(mm): 274×97×78

Standard Accessories: Li-ion battery, Power supply adapter, Adapter plug, Wrist strap, USB cable, HDMI cable, Quick Start Guide, User Manual, Capacitive screen   gloves, TF card (16GB), Tripod mount interface

Optional Accessories: Li-ion battery, Pouch, Battery charger, Tripod, Monitor
