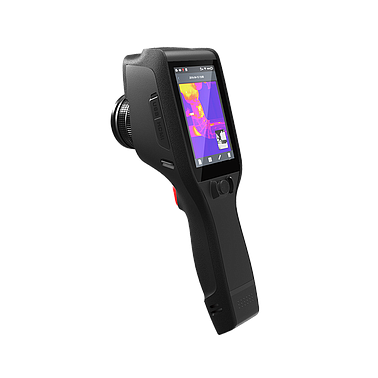

Guideir D192M 热成像红外热像仪 (Realtime HDMI,192×144 px, 650℃)

-Imaging Performance
Detector type: VOx UFPA
Spectral range: 8~14μm
Pixel size: 25μm
IR resolution: 192×144
NETD: 60mK
Field of view(FOV): 37.8°×28.8°
Minimum focus distance: 0.5m
Focal length: 7mm/ F1.1
IFOV: 3.45mrad
Lens identification: Automatic/ manual
Focus: Manual
Digital zoom: 1.1~4
Frame rate: 25Hz
-Visual Camera
Resolution: 5M
Focus: Fixed
FOV: 25°×19°
-Image Presentation
Display: Highlight LCD touch screen
Screen size: 4"
Resolution: 480×800
FOV: 70°
Color depth: 24bits
Display technology: IPS
Image modes: IR image, Visual image, MIF, Picture in picture(PIP)
-Measurement Features
Temperature range: -20℃~150℃, 100℃~650℃
Accuracy: ±2℃ or ±2% of reading for ambient temperature
15°C~35°C and objecttemperature above 0°C
-Measurement Analysis
Spotmeter: 5
Line :2
Area: 5
Auto tracking: Tmax/Tmin of full screen, Tmax/Tmin of object
Isotherm: Above, below, interval
Delta T: Yes
Emissivity correction: Yes: variable from 0.01 to 1.00
Alarm: Hot/cold spot
-Functions
Laser: Yes
Wi-Fi: Yes
Illuminator: Yes
-Setup
Color Palettes: 8:White Hot, Fulgurite, Iron Red, Hot Iron, Medical, Arctic, Rainbow 1, Rainbow 2
Language: 21
System setting: Temperature unit, Date and time formats, Watermark, Report
-Image storage
Image format: JPG with temp info
Storage Medium: In camera and TF card
-Image Annotations
Voice annotation: Yes, 60s
Text annotation: Yes
Visual image annotation: Yes, up to two images
Image marker: Yes
-Video storage
Videowithout temp info: H.264 format
Videowithtemp info: User-defined format
Video Streaming: via USB or Wi-Fi
-Interfaces
Data communication interface: USB, HDMI, TF card, Power
Audio: Microphone and speaker
USB: Micro USB 2.0
HDMI: Micro HDMI
TF card: 16G, up to 32G
Vibration feedback: by vibrating motor
-Power system
Battery type: Rechargeable Li-ion battery
Battery voltage: 7.4V
Operating time: ≥4h
Charging temperature: 10℃~35℃
Boot time: 40s
Charging system: In camera or on separate charger
Charging period: 4h in camera, 5h in dual-bay charger
External power supply: 12V
Power management: Automatic shut-down and sleeping mode
- Environmental Parameters
Operating temperature range: -10℃~50℃
Storage temperature range: -40℃~70℃
Humidity: <95%
Encapsulation: IP54
*Drop test: 2m
Shock: 30g 11ms（IEC 60068-2-27）
Vibration: 10Hz~150Hz~10Hz 0.15mm（IEC 60068-2-6）
Certification: CE, FCC, ROHS
-Physical Characteristics
Weight (including Battery and lens): 840g
Dimensions(including Battery and lens): 274mm×106mm×78mm
Weight of battery: 135g
Dimensions of battery: 164mm×44mm×39mm
Color: Red-black
