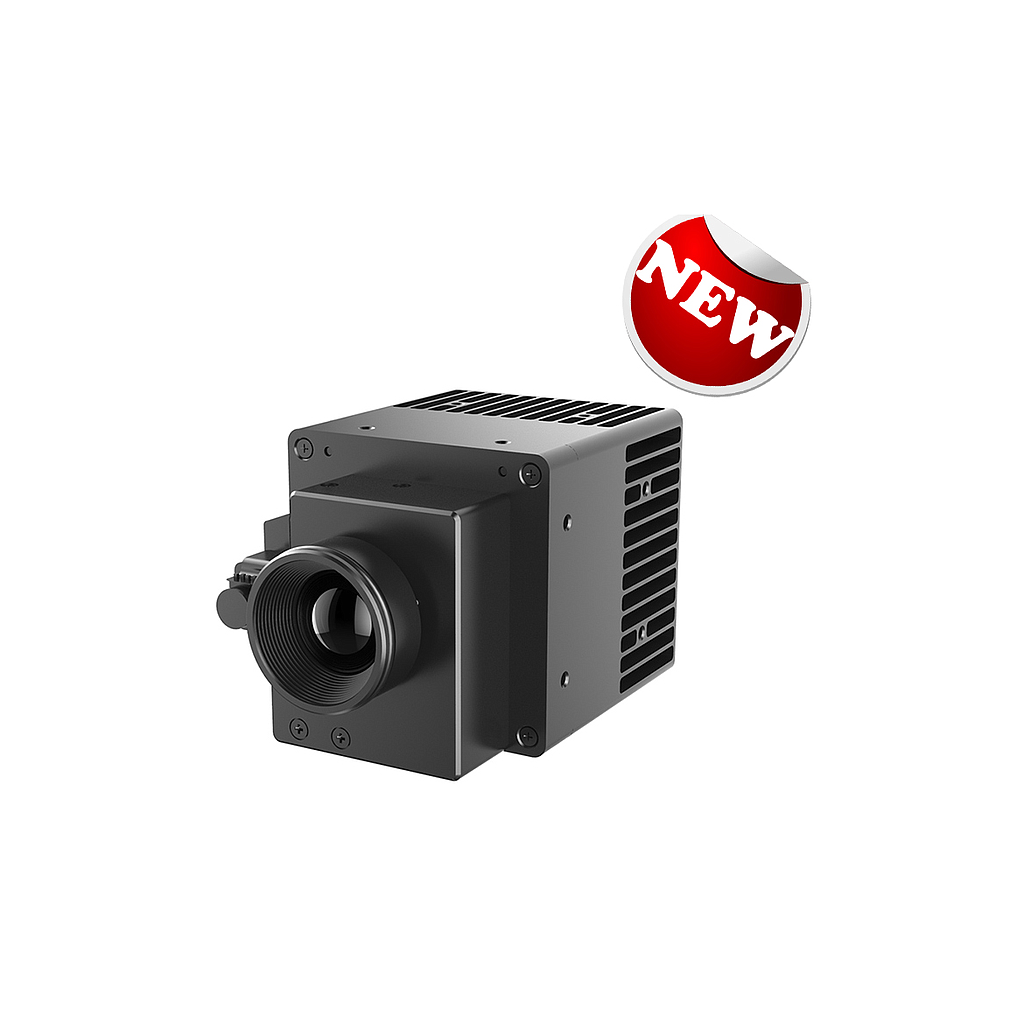

Guideir IPT640 固定式热像仪 (100°C-650°C)

Imaging Performance

IR resolution: 640×480

Spectral Range: 7.5~14μm

Pixel size: 17μm

NETD: ≤60mk

Lens

FOV/Focal length: 30°×23°/20mm

Focus: Electric/Automatic

Measurement Features

Temperature range: -20°C-150°C;-20°C-350°C or-20°C-150°C; 100°C-650°C;

Accuracy: ±2°C or ±2% of reading for ambient temperature 15°C to 35°C

Measuring distance: 0.5m-5m; 0.5m-10m; 5m-25m

Ethernet

Function: Wireless Communication and control

Ethernet Type: 1000Mbps

Video Streaming: 25Hz Y8+(0Hz~25Hz) Raw data Y16

Protocol: RTSP, UDP, HTTP

IP distribution: Static IP

Networking mode: Directly connect to the computer for Y16 of no lower than 16Hz; connect via LAN (up to 32 sets) for Y16 of no lower than 16Hz.observe 9 sets synchronously.

Power system

Typical voltage: 12V

Environmental Parameters

Operating temp range: -10℃~50℃

Storage temp range: -40℃~70℃

Humidity: 5%~95%. non-condensing

Shock: 10Hz~150Hz~10Hz 0.15mm (IEC 60068-2-6 )

Vibration: 30g 11ms (IEC 60068-2-27)

Physical Characteristics

Dimensions: 98mm×60mm×60mm (lens included. interface excluded)

Weight: 410g

Mounting interface: M3 thread (for 4 sides)

External interfaces: Power(DC), power indicator, Ethernet port(RJ45), network reset port, alarm output IO (alarm can be triggered by front-end or back-end temperature measurement )

Standard accessories: Thermal module with a standard lens ×1, power adapter ×1, CCC plug ×1, CE plug ×1, CD (including SDK, SDK installation instructions, DEMO software and User maual) ×1, Network cable ×1
