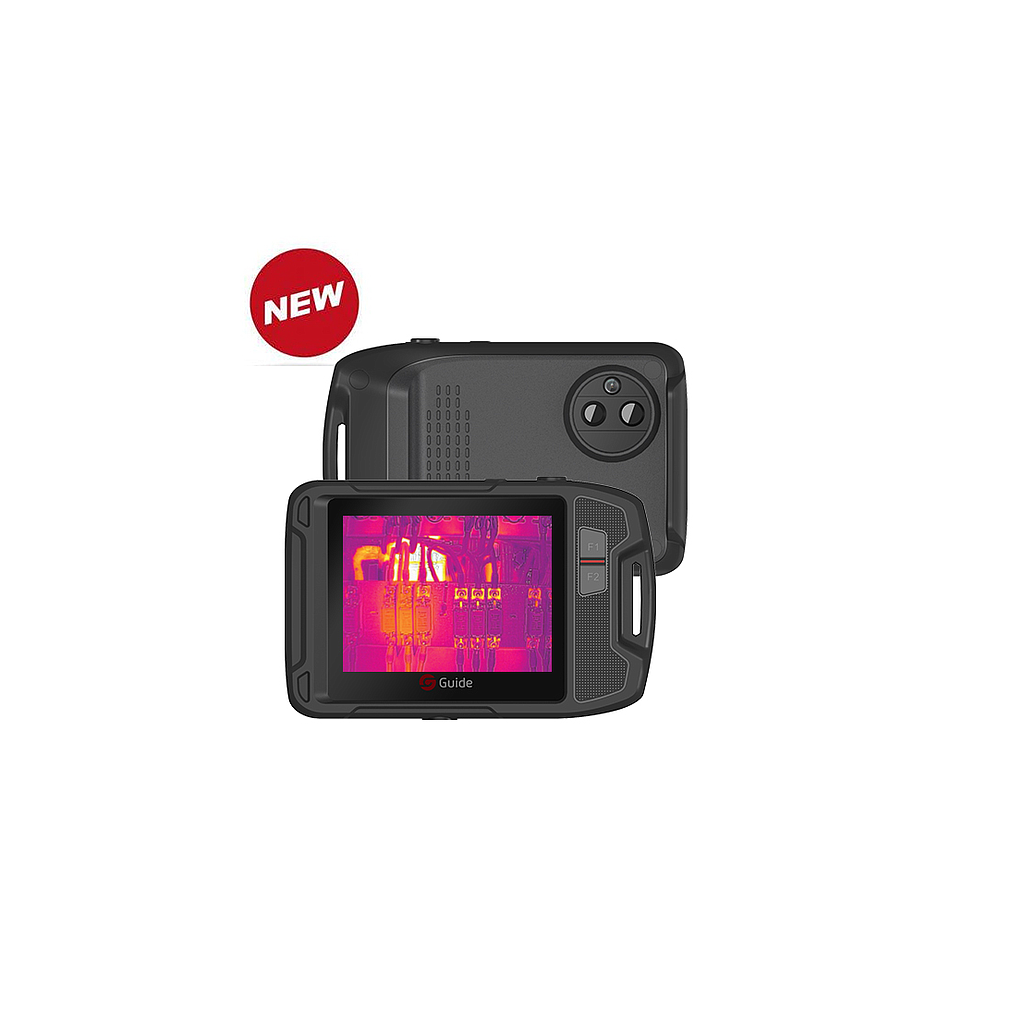

Guideir P120V 口袋红外热像仪 (-20°C-400°C; ±2°C/±2%)

IR image & Optical

IR Resolution: 120×90 @17μm

Detector type: VOx/7.5~14μm

Frame Rate: 15HZ/9HZ

Thermal Sensitivity/NETD: 60 mk

Focal Length: 2.28mm/F1.13

Field of view (FOV): 50°×38°

Spatial Resolution (IFOV): 7.6mrad

Focus: Focus-free

Visible Camera

Visible Camera Resolution: 320×240, Focus-free

Flashlight: Yes（on/off/flash）

Image Display

Display: 3.5" LCD touchscreen display

Display Resolution: 320×240

Image modes: IR, Visible, Picture-in-Picture, MIF

Color Palettes: 6: Hot Iron, Black Heat, Heat Iron, White Heat, Medical, Arctic

Digital zoom: Smooth zoom, up to 8X, Auto,Semi-automatic, Manual

Temperature Measurement

Measurement Range: -20°C-150°C，100°C-400°C（Auto switching）

Accuracy: ±2°C or ±2%, whichever is greater (target temp ≥0°C, ambient temp is 15°C ~ 30°C )

Measurement Spot: Center spot，and can add one removable measurement spot

Image Storage

Storage Media: 4G Internal memory，at least 500 sets of images

IR Image: Format Full Radiometric (JPG)

Visible Image: Yes

Power system

Battery Tpye: Built-in rechargeable li-thium battery, non- removable

Battery Operating Time: ≥2 hours （when wifi-off）

Charging Time: ≤1.5 hours

Environmental parameters

Operating Temperature: -10°C~50°C

Storage Temperature: -40°C~70°C

Encapsulation: IP54, 1-meter drop test

Certification: CE, FCC, ROHS

Weight: 240g

Size: 133mmx87mmx24mm

Standard Accessories: Charger + Adapter, TYPE-C USB cable, Wrist Strap, Pouch, Quick start Guide, Data Download Card
