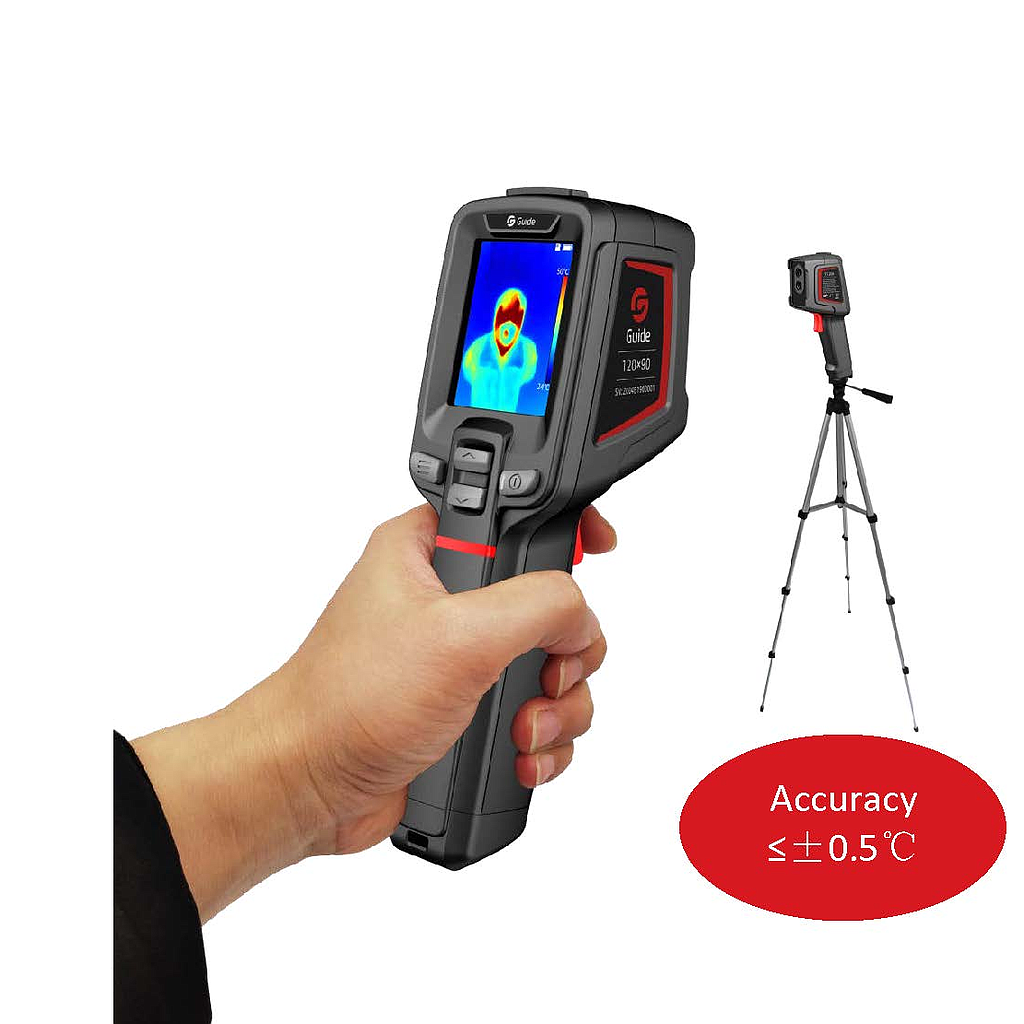

Guideir T120H 口袋红外热像仪 (20°C-50°C; ≤±0.5°C)

IR Detector

IR resolution: 120x90@17μm

Detector type: Uncooled Vox/7.5~14μm

Frame Rate: 25Hz

NETD: 60mk

Focal Length/F: 2.28mm/F1.13

FOV: 50°x38°

IFOV: 7.6mrad

Focus: Focus-free

Image Display

Display type: 2.4inch LCD display

Display Resolution: 240x320

Image Mode: IR Image

Temperature Measurement

Filter Range: 20°C-50°C

Accuracy: ≤±0.5°C (Ambient temperature 25°C, target distance 1m, target temperature 32°C~ 42°C)

Measurement Point: Central point

Alarm: Over-temperature alarm, color prompt (preset value: 37.3°C)

Image Storage

Storage Media: TF card (maximum support: 32G)

Image Format: Full Radiometric (JPG) (120x90)

Communication Mode

USB: TYPE-C, TF Card slot

Tripod Interface: YES

Power System

Battery Type: Rechargeable Li-ion battery

Operating Time: ＞8H

Charging Time: DC, ≤2.5H

Environmental Parameter

Operating Temperature: -10°C~50°C

Storage Temperature: -40°C~70°C

Encapsulation: IP54，2-meter Drop Test

Others

Certification: CE/ROHS/FCC

Weight: 350g

Dimension: 194mmx61.5mmx76mm

Standard Accessories: Wristband, Quick start Guide, Charging adapter, Plug, USB Type-C cable, Download card, 16G TF Card
