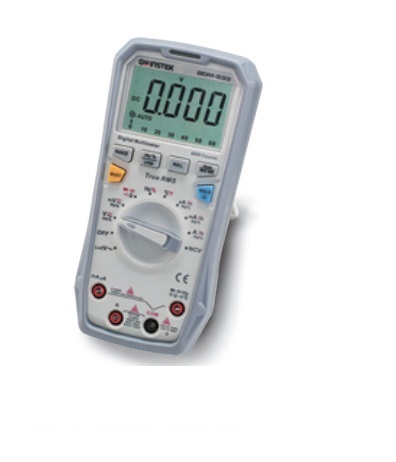

GW INSTEK GDM-533 手持数字万用表

DC VOLTAGE

Range: 60.00mV, 600.0mV, 6.000V, 60.00V, 600.0V, 1000V

Best Accuracy: ±(0.5%rdg + 3 digits)

Input Impedance: 10 MΩ (At mV range : 1GΩ)



AC VOLTAGE

Range: 60.00mV, 600.0mV, 6.000V, 60.00V, 600.0V, 1000V

Best Accuracy: ±(1.0%rdg + 3 digits)

Frequency Response: 40Hz-1kHz

Input Impedance: 10 MΩ



DC CURRENT

Range:  600.0µA, 6000µA, 60.00mA, 600.0mA, 6.000A, 20.00A

Best Accuracy: ±(1.0%rdg + 2 digits)



AC CURRENT

Range: 600.0µA, 6000µA, 60.00mA, 600.0mA, 6.000A, 20.00A

Best Accuracy: ±(1.2%rdg + 5 digits)



RESISTANCE

Range: 600.0Ω, 6.000kΩ, 60.00kΩ, 600.0kΩ, 6.000MΩ, 60.00MΩ

Best Accuracy: ±(1.0%rdg + 2 digit)



CONTINUITY BEEPER

Buzzer sounds if conductance less than 50Ω



DIODE TEST

Open Circuit Voltage: 3V (Approx.)



CAPACITANCE

Range: 60.00nF, 600.0nF, 6.000µF, 60.00µF, 600.0µF, 6.000mF, 60.00mF

Best Accuracy: ±(3.0%rdg + 5 digits)



FREQUENCY

Range: 10Hz ~ 10MHz

Best Accuracy: ±(0.1% rdg + 4 digits)



TEMPERATURE

Range: -40ºC ~ 1000ºC / -40ºF ~ 1832ºF

Best Accuracy: ±(1.0%rdg + 3 ºC); ±(1.0%rdg + 4 ºF);



SPECIAL FUNCTION

Auto Ranging; True RMS; Analog Bar; USB

Display Backlight, NCV Function; Audible / Visual Alarm

LoZ ACV



LCD DISPLAY

6000 counts



POWER SOURCE

1.5V AAA x 4



DIMENSIONS & WEIGHT

89(W) x 186(H) x 49(D) mm, Approx. 400g



ACCESSORIES

USB cable & Adapter socket, Battery, User manual, Test leads, K-type thermocouple
