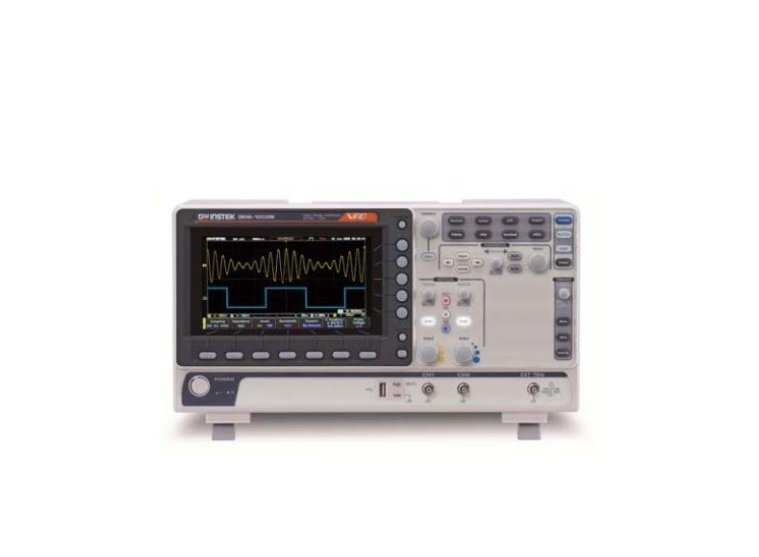

GW INSTEK GDS-1202B 数位储存示波器 (2 channels, 200 Mhz, 1 GSa/s)
制造商: GW INSTEK Model: GDS-1202B 来源: Taiwan 保障: 12 Month - 联系
200 MHz Bandwidths
Channels: 2 + Ext
7" 800 px. 256 color LCD WVGA Display
10M/Ch Memory depth per channel
1GS/s Maximum
50,000 wfm/s update rate
1M FFT frequency domain signal display
Zero Key Function for horizontal time, vertical voltage, triggering
LabVIEW Driver
USB 2.0 High-speed host port
Ethernet Port (LAN) with GDS-1074B and GDS-1104B
OpenWave software free download from Instek
