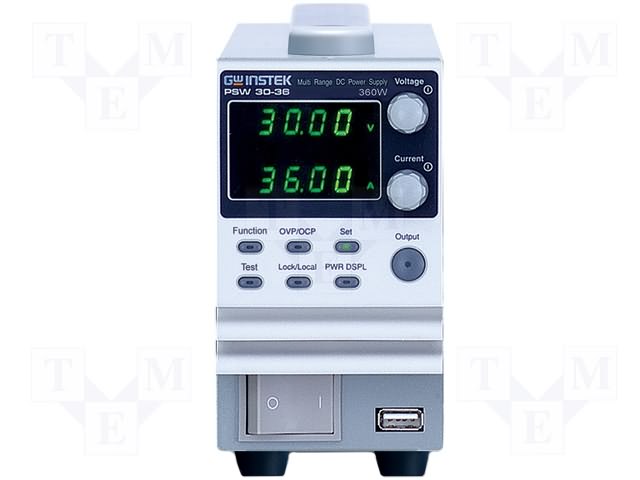

GW INSTEK PSW 30-36 可编程开关直流电源 (30V, 36A, 360W)

Accessories: ;  User Manual (CD) x 1; AC Power Cord x 1, USB Cable, Output terminal cover,  Basic Accessory Kit, Test leads: 1x red, 1x black
Rated Output Voltage: 30V
Rated Output Current: 36A
Rated Output Power:360W
Power Ratio: 3
Constant Voltage Mode
     Line Regulation    mV    18
     Load Regulation    mV    20
     Ripple and Noise    p-p    mV    60
                                        r.m.s    mV    7
     Temperature coefficient    ppm/°C    100ppm/°C of rated output voltage,after a 30 minute warm-up.
     Remote sense compensation voltage    V/wire    0.6
     Rise Time:   Rated Load    ms    50
                             No Load    ms    50
     Fall Time      Rated Load    ms    50
                             No Load    ms    500
     Transient response time: 1ms
Constant Current Mode :
     Line regulation (*1)    mA    41
     Load regulation (*9)    mA    41
     Ripple and noise    r.m.s    mA    72
     Temperature coefficient    ppm/°C    200ppm/°C of rated output current, after a 30 minute  warm-up.
Protection Function    PSW    30-36
     OVP    Setting range    V    3-33
                  Setting accuracy         ± (2% of rated output voltage)
     OCP    Setting range    A    3.6-39.6
                 Setting accuracy         ± (2% of rated output current)
     Over temperature protection (OTP): Turn the output off.
     Low AC input protection (AC-FAIL): Turn the output off.
     Power limit (POWER LIMIT)
               Operation         Over power limit.
                Value (fixed)         Approx. 105% of rated output power
Front Panel    PSW    30-36
     Display, 4 digits
              Voltage accuracy 0.1% +    mV    20
              Current accuracy 0.1% +    mA    40
Programming and Measurement (Interface)
      Voltage programming accuracy 0.1% +    mV    10
      Current programming accuracy 0.1% +    mA    30
      Voltage programming resolution    mV    1
      Current programming resolution    mA    1
      Voltage measurement accuracy 0.1% +    mV    10
      Current measurement accuracy 0.1% +    mA    30
      Voltage measurement resolution    mV    1
      Current measurement resolution    mA    1
Input Characteristics: 30V
     Nominal input rating: 100Vac to 240Vac, 50Hz to 60Hz, single phase
     Input voltage range: 85Vac ~ 265Vac
     Input voltage range: 47Hz ~ 63Hz
     Maximum input current
                 100Vac: 5A
                 200Vac: 2.5A
     Inrush current:< 25A for 360W
     Maximum input power:500VA
     Power factor
                 100Vac: 0.99
                  200Vac: 0.97
     Efficiency
                 100Vac: 77%
                  200Vac: 79%
     Hold-up time: 20ms or greater
Analog Programming and Monitoring
     Series and Parallel Capability    PSW    30V
              Parallel number    Units    3
               Series Number    Units    2
USB: TypeA: Host, TypeB: Slave, Speed: 1.1/2.0,
USB Class: CDC(Communications Device Class)
LAN: MAC Address, DNS IP Address, User Password,Gateway IP Address, Instrument IP Address, Subnet Mask
GPIB: Optional: GUG-001 (GPIB to USB Adapter)
General Specifications
Weight (main unit only): Approx. 3kg
Dimensions (WxHxD): 71×124×350mm
