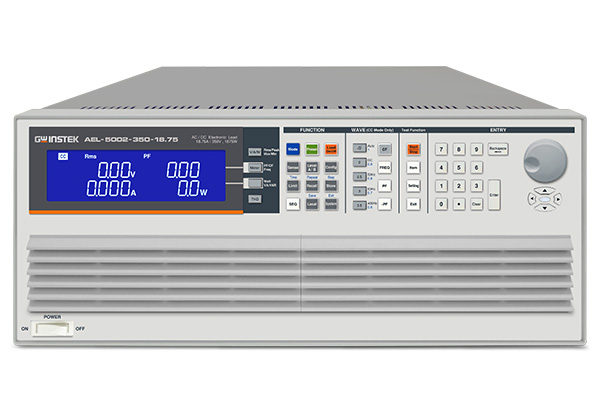

GW INSTEK AEL-5002-350-18.75 电子负载 (1875W, 350V, 18.75A)

Power (W): 1875 W

Current(Ampere): 18.75 Arms / 56.25Apeak

Voltage: 50~350Vrms / 500Vdc

FREQUENCY Range : DC,40~440Hz(CC,CP Mode) , DC~440Hz(LIN,CR,CV Mode)

 Constant Current Mode for Sine-Wave

Range: 0~18.75A

Resolution: 0.3125mA/16bits

Linear Constant Current Mode

Range: 0~18.75A

Resolution: 0.3125mA/16bit

Constant Resistance Mode

Range: 3.2 ohm~64K ohm

Resolution: 0.0052083mS/16bits

Constant Voltage Mode

Range: 50~350Vrms / 500Vdc

Resolution: 0.01V

Constant Power Mode

Range: 1875W

Resolution: 0.1W

Dimension( H x W x D ): 177 x 440 x 558 mm

Weight: 21.5Kg

Optional Accessories

PEL-022 GPIB Card

PEL-023 RS-232 Card

PEL-024 LAN Card

PEL-025 USB Card

PEL-025 USB Card
