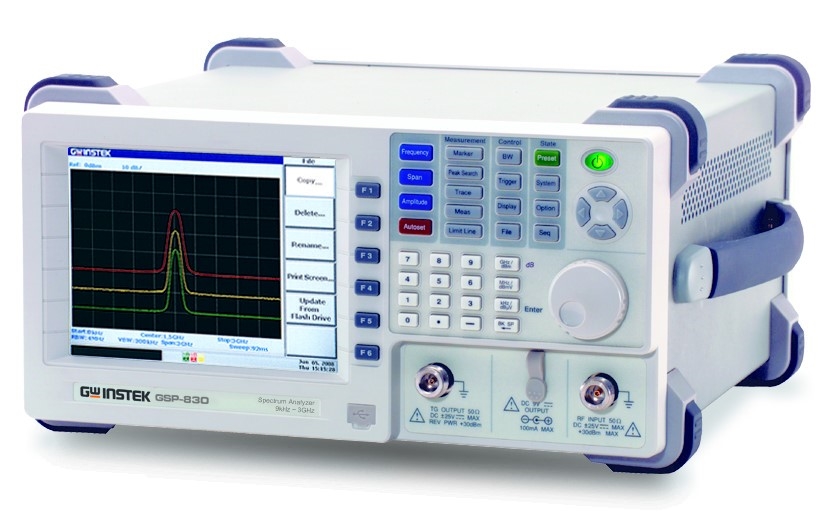

GW instek GSP-830 便携式频谱分析仪(9kHz~3Ghz,跟踪信号发生器)

REQUENCY
Frequency Range
9kHz ~ 3GHz
Aging Rate
± 10ppm, 0~50°C, 5ppm/yr
Span Range
2kHz ~ 3GHz in 1-2-5 sequence, full span, zero span
Phase Noise
-80dBc/Hz @1GHz 20kHz offset typical
Sweep Time Range
50ms ~ 25.6s
RESOLUTION BANDWIDTH
RBW Range
3kHz, 30kHz, 300kHz, 4MHz
RBW Accuracy
15%
Video Bandwidth Range
10Hz ~ 1MHz in 1-3 steps
AMPLITUDE
Measurement Range
-103dBm ~ +20dBm: 1MHz ~ 15MHz, Ref.Level @ -30dBm
-117dBm ~ +20dBm: 15MHz ~ 1GHz, Ref.Level ≧-110dBm
-114dBm ~ +20dBm: 1GHz ~ 3GHz, Ref.Level ≧-110dBm
(Span = 50kHz, RBW = 3kHz)
Overload Protection
Max. +30dBm, ±25VDC
Reference Level Range
-110dBm ~ +20dBm
Accuracy
±1dB @100MHz
Frequency Flatness
±1dB
Display Range Linearity
±1dB over 70dB
DYNAMIC RANGE
Average Noise Floor
<-135±1dBm/Hz: 1MHz ~ 15MHz, Ref.Level @ -30dBm
<-149dBm/Hz, typical -152dBm/Hz: 15MHz ~ 1GHz, Ref.Level ≧-110dBm
<-146dBm/Hz, typical -149dBm/Hz: 1GHz ~ 3GHz, Ref.Level ≧-110dBm
Third Inter-Modulation
<-70dbc rf="" input="" -40dbm="" ref="" level="" -30dbm="" span="">
Harmonic Distortion
<-60dbc rf="" input="" -40dbm="" typical="" ref="" level="" -30dbm="" span="">
Non-Harmonic Spurious
<-93dBm, 1MHz ~ 15MHz, Ref.Level @-30dBm
<-107dbm 20dbm:="" 15mhz="" 1ghz="" ref="" level="" -110dbm="" br=""> <-104dbm 20dbm:="" 1ghz="" 3ghz="" ref="" level="" -110dbm="" br=""> (Span = 50kHz, RBW = 3kHz)
GENERAL
Display
640 x 480 high resolution TFT color LCD
Split Windows
Active Window: Upper, Lower or Alternate (two simultaneously sweeping windows)
Markers
10 Markers for peaks: 5 normal-delta marker pairs
Functions: Delta, To Peak, To Minimum, Peak Track, Peak Table, Peak Sort
Trace Detection
3 traces with Peak, Maximum hold, Freeze, Average, Trace math
Power Measurement
ACPR, OCBW, Channel Power, N dB and Phase Jitter
Autoset Function
Auto tuning the measurement result for observation
Trigger
Conditions: Video, External (Positive-going, +5V TTL external signal)
Mode: Normal, Single, Continuous

Sequence
Automated test by user-defined macros without any remote controller, 10 Sequential macro set and 10 macros per each set, Variable delays and wait-to-go facilitate automated measurement, Do-sequence links and nests different sequence sets.
CONNECTORS
RF Input

N female, 50Ω nominal
RF input VSWR: <2:1, @0dBm Reference Level
External Reference
Type: BNC female
Clock Input
1M, 1.544M, 2.048M, 5M, 10M, 10.24M, 13M, 15.36M, 15.4M, 19.2MHz
Reference Clock Output
Type: BNC female, 10MHz
DC Input (DC Power Operation)
Jack : 5.5mm, 12V
DC Output (for GAP-801)
Type: SMB Male, outputs +9V/100mA Max.
INTERFACE
RS-232C
Sub-D 9 pins female
USB Connector
USB Host/Device full speed supported
VGA Output
Front panel: Type A receptacle for USB flash devices
Option: GPIB Interface
Fully programmable with IEEE 488.2 compliance
POWER SOURCE


AC 100 ~ 240V, 50/60Hz
ACCESSORIES

User Manual x 1
Power Cord x 1
USB Cable (Type A plug to Type mini-B plug) x1
DIMENSIONS & WEIGHT

330(W) x 170(H) x 340(D) mm
Approx. 6kg
