GYS MULTIWELD 250T MMA, MIG/MAG 焊接机 (230V, 1ph, 40-250A)

The MULTIWELD 250T is a semi-automatic three-phase welding machine, combining MIG/MAG, cored wire and MMA welding processes. Its intuitive interface integrates digital displays for easy and precise adjustment. Recommended for welding steel, stainless steel and aluminium, the MULTIWELD 250T is perfect for light fabrication and maintenance workshops.

MULTIPROCESS:

+ MIG/MAG welding :

- steel wire: Ø 0.6 to 1.2 mm

- stainless steel wire: Ø 0.8 to 1.2 mm

- aluminium wire: Ø 0.8 and 1.0 mm

- cored wire (reverse polarity): Ø 0.9 to 1.2 mm

+ MMA welding: basic and rutile electrodes (up to Ø 5 mm).

OPTIMISED MIG/MAG SETTINGS

+ Choice of the trigger mode: 2T or 4T.

+ Welding aid: table on the side of the generator to help the user adjust his tension and filler wire diameter according to the thickness of the material to be welded.

INTUITIVE

+ Display readable even in bright light.

+ Simple interface with large buttons and knobs for use with gloved hands.

INTEGRATED WIRE FEEDER

+ Compatible wire reels: Ø 200 / 300 mm.

+ Powerful 2 roller motorized wire-feeder for an efficient wire feeding.

+ EURO torch connector for quick assembly/disassembly.

PRE-HEATING, PURE CO2

+ Pre-installed socket (36 V - 4.2 A) for gas heater in pure CO2 welding (heater not included).

+ Compatible with US (type A) and EURO electrical sockets (type C/E/F).

ROBUST

+ Reinforced structure.

+ 2 steel handles for easy manipulation.

Specifications:

Welding current: 230 V, 1 ph, 50/60 Hz

Power supply: 16 A

Welding current range (MIG/MAG): 40-250 A

Welding current range (MMA): 40-250 A

Duty cycle (environment temp. at 40°C):

   - MIG/MAG:

        Imax 250 A @ 30%

        @ 60%: 200 A / 24 V

        @ 100%: 180 A / 23 V

   - MMA:

        Imax 250 A @ 30%

        @ 60%: 200 A / 28 V

        @ 100%: 180 A / 27.2 V

Wire feed speed: 2 - 15 m/min, 4 rollers (2 motor)

Supported wire reels: Ø200-300 mm

Wire diameter:

            + Steel: 0.6 - 1.2 mm

            + Inox: 0.8 - 1.2 mm

            + Aluminum: 0.8 - 1 mm

            + Cored wire: 0.9 - 1.2 mm

No-load voltage: 59 V

Protection level: IP 21

Dimensions (L x w x h): 77 x 79 x 47 cm

Weight: 40 kg

Standard: IEC 60974-1/5/10 A

Original equipment (roller): 0.8/1.0 - A (steel, inox)

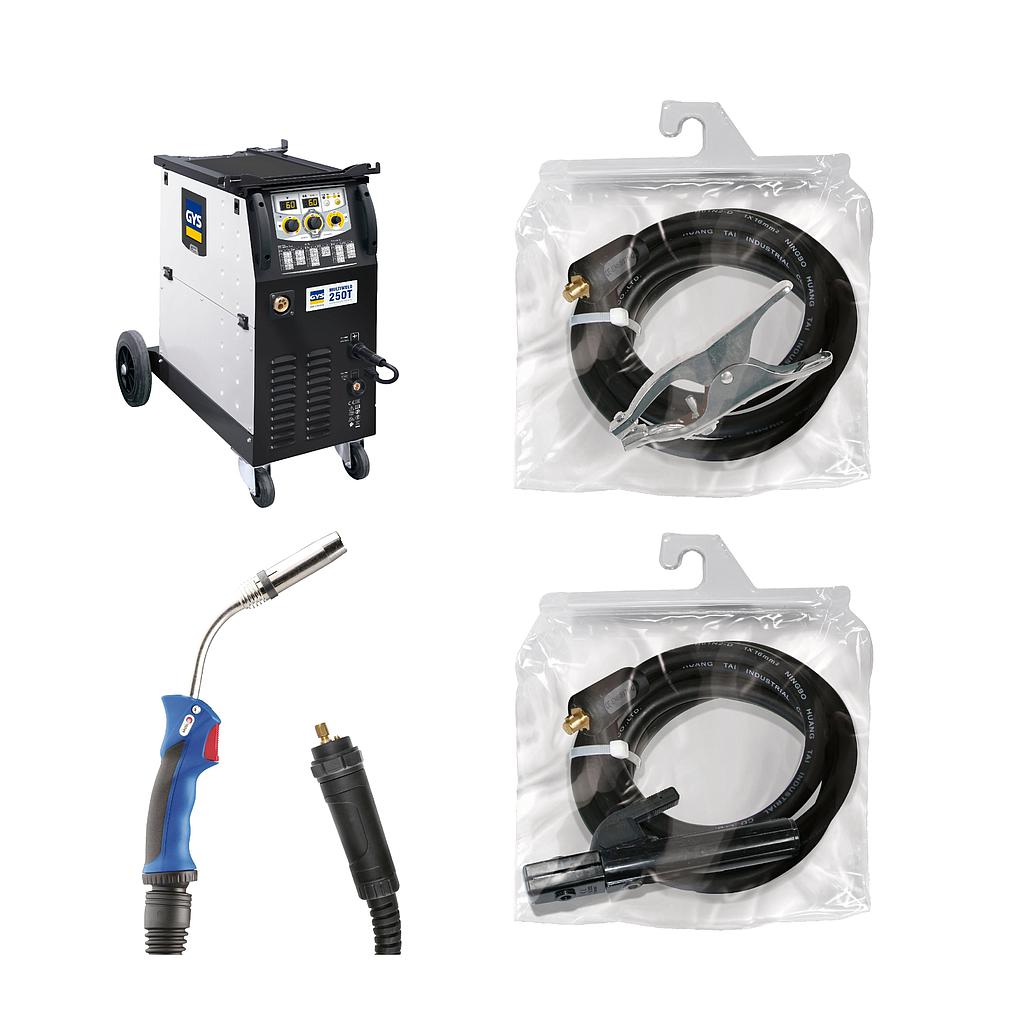

Included accessories: Torch Binzel® MIG 250A - 4 m + Electrode holder 4 m + Earth clamp 4 m
