GYS MAGYS 400-4 MIG/MAG 焊接机 (400V, 3ph,40-350A, aluminum torch 3m)

The MAGYS 400-4 is a « synergic » 3-Phase, Compact MIG/MAG welder. Its heavy duty construction and high duty cycle make it ideal for industrial environments welding steel, stainless-steel and aluminium. Equipped with a 75W wire feeder and 4 drive rollers, it is perfectly suited for intensive works up to ø1.2.

4 MODES:

- 2T / 4T

- Spot: Welding with adjustable spot diameter

- Delay: Intermittent welding mode

SYNERGIC OR MANUAL

More than 1000 parameters managed by micro processor.

- Synergic mode: The wire speed parameters can be set up directly and easily for an optimum result by just setting-up:

• The wire type

• The wire diameter

• The power, with its two switches

MAGYS 400-4 will automatically control:

• Optimum wire speed

• The pre-gas / post-gas

• Burn back

- Manual mode: Enables manual control of the wire speed

HEAVY DUTY DESIGN AND ENGINEERING

- Wire feeder and 4 drive rollers

- Robust build to suit industrial requirements

- Gas bottle support up to 10m³ (50l)

- 4 eye bolts for lifting the machine

- Heavy duty reinforced wheels for good mobility

Specifications:

Welding current: 400 V, 3 ph, 50/60 Hz

Power supply: 32 A

Welding current range: 40-350 A

Duty cycle (environment temp. at 40°C):

   350 A / 31.5 V @ 50%

   320 A / 30 V @ 60%

   320 A / 30 V @ 100%

Wire feed speed: 1 - 24 m/min- 4 motored rollers

Supported wire reels Ø200-300 mm

Wire diameter:

    Cored wire: -

    Steel, inox: 0.6 - 1.2 mm

    Aluminum: 1.0 - 1.2 mm

Voltage level: 20

No-load voltage: 17/43 V

Protection level: IP 23

Dimensions (L x w x h): 50 x 105 x 98 cm

Weight: 130 kg

Standard: IEC 60974-1/5/10 A

Original equipment (roller): 1.0/1.2 - C (Steel, inox)

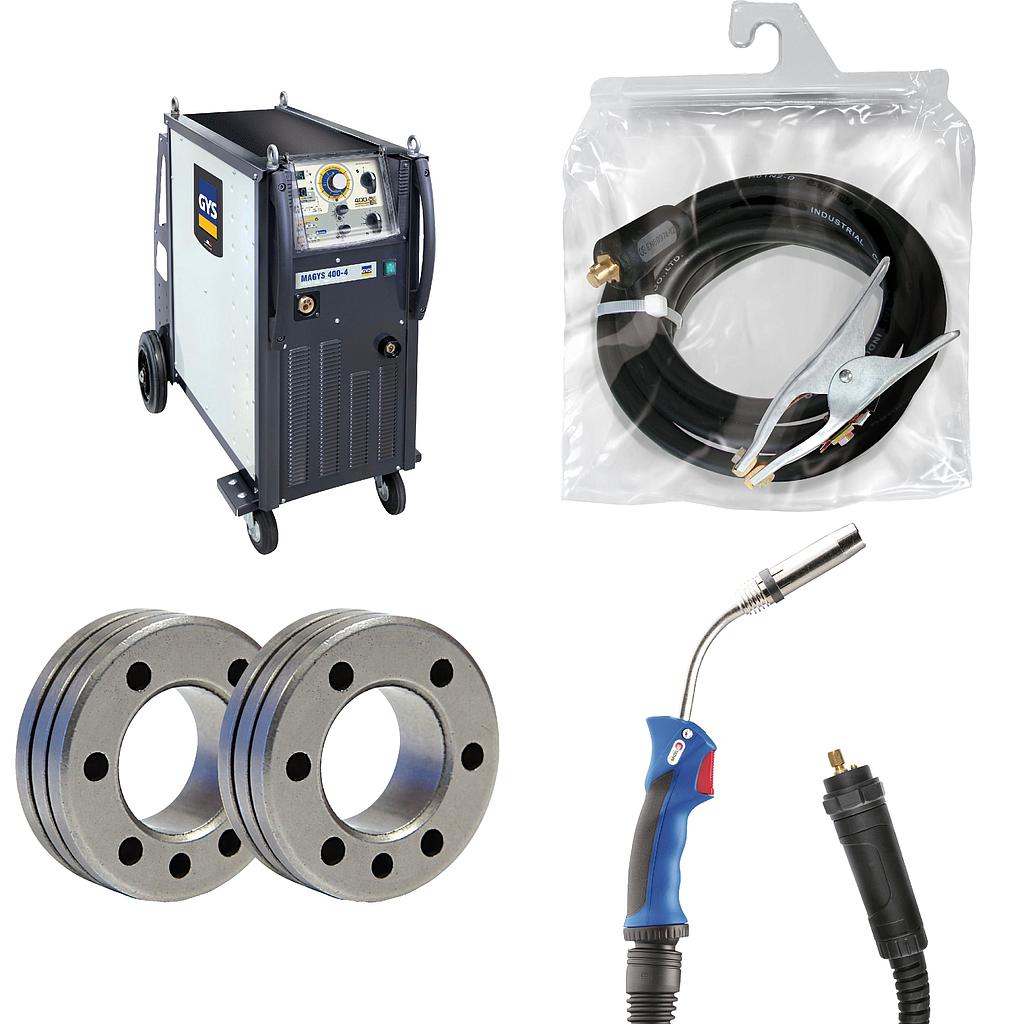

Included accessories:

Roller type C: original equipment (steel/ inox): Ø1.0/1.2

Roller type C: Ø 1.0/1.2- aluminum- 042162

Earth cable 400 A - 4 m - 047853

Torch MIG/MAG GRIP (Aluminum), 350A-3m- 040731
